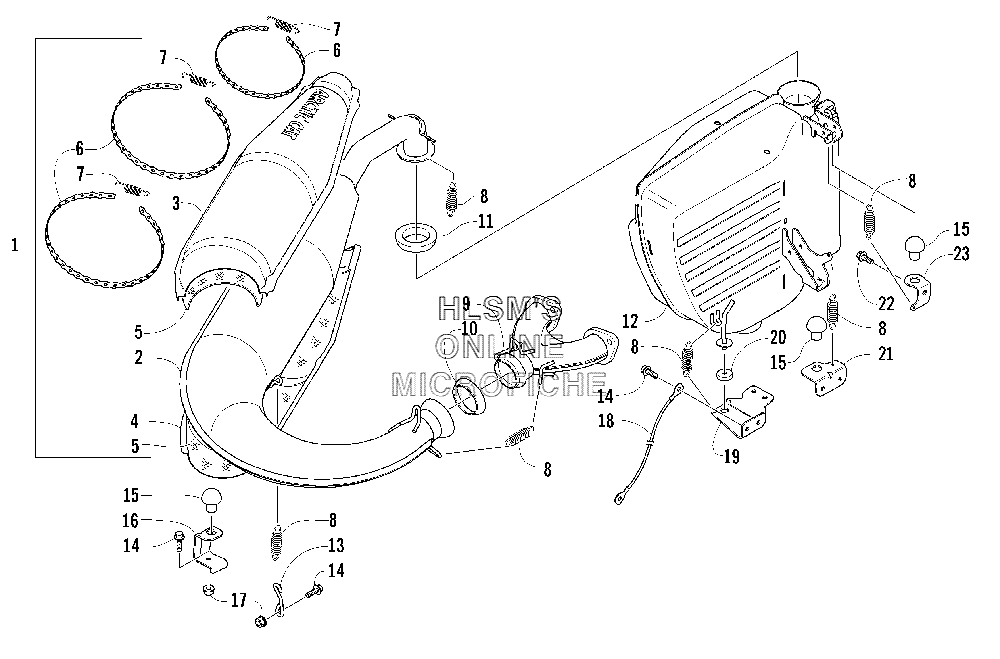

EXHAUST ASSEMBLY для Arctic Cat Z 570 (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
10712-990 EXPANSION CHAMBER ASSY (INC. 2, 7)EXPANSION CHAMBER ASSY (INC. 2, 7)
-
20712-732 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
31612-436 COVER (UPPER)COVER (UPPER)
-
41612-435 COVER (LOWER)COVER (LOWER)
-
51612-550 INSULATIONINSULATION
-
60624-526 TIE, PERFORATED BAND (5 FT)TIE, PERFORATED BAND (5 FT)
-
60624-541 TIE, PERFORATED BAND (25 FT)TIE, PERFORATED BAND (25 FT)
-
71612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
80612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
91712-055 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
100612-131 GASKET, EXHAUSTGASKET, EXHAUST
-
111612-066 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
120712-995 RESONATORRESONATOR
-
130712-913 BRACKET, WIRE FORMBRACKET, WIRE FORM
-
148020-040 SCREW, CAPSCREW, CAP
-
150612-111 BUMPER, RUBBERBUMPER, RUBBER
-
161612-508 BRACKET, MOUNTING, EXPANSION CHAMBERBRACKET, MOUNTING, EXPANSION CHAMBER
-
178048-366 NUT, LOCKNUT, LOCK
-
180686-126 WIRE, GROUNDWIRE, GROUND
-
190712-834 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
201612-319 BUSHING, STEM, RESONATOR MOUNTINGBUSHING, STEM, RESONATOR MOUNTING
-
210712-992 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
228020-134 SCREW, CAPSCREW, CAP
-
230712-993 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
