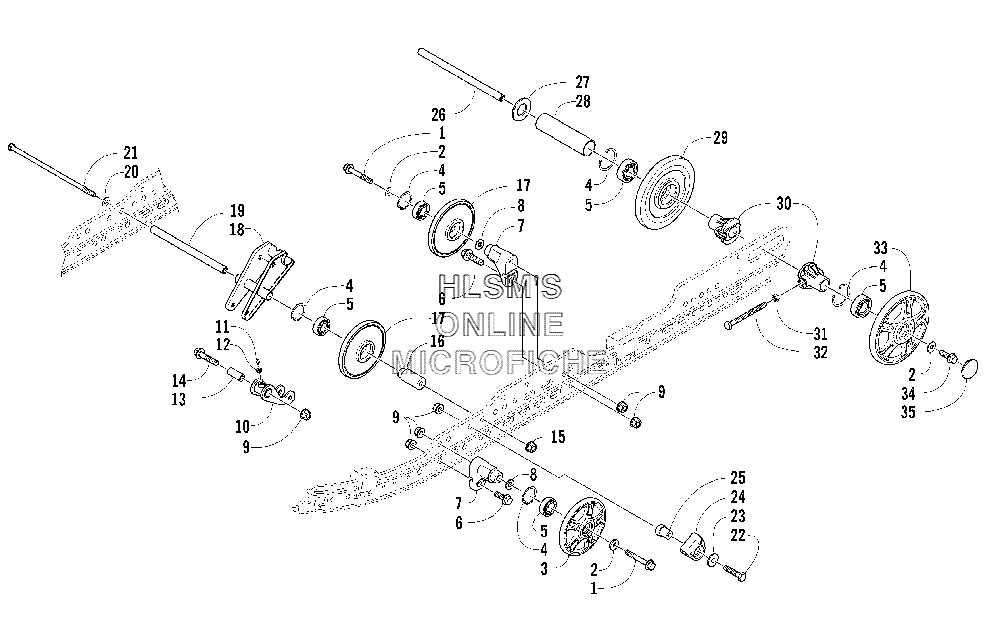

IDLER WHEEL ASSEMBLY для Arctic Cat Z 570 (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
32604-829 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
40623-946 RING, RETAININGRING, RETAINING
-
51604-847 BEARINGBEARING
-
68020-224 SCREW, CAPSCREW, CAP
-
72604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
81604-187 WASHERWASHER
-
98047-486 NUT, LOCKNUT, LOCK
-
101704-272 PIVOT, SHOCK (REAR) (INC. 11, 12)PIVOT, SHOCK (REAR) (INC. 11, 12)
-
111623-010 FITTING, GREASEFITTING, GREASE
-
121623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
131604-329 AXLE, SHOCK PIVOTAXLE, SHOCK PIVOT
-
148020-228 SCREW, CAPSCREW, CAP
-
158047-490 NUT, LOCKNUT, LOCK
-
162604-964 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
171604-837 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
181704-235 BRACKET, MOUNTING, ARM SHOCK (FRONT)BRACKET, MOUNTING, ARM SHOCK (FRONT)
-
192604-737 AXLE, STEELAXLE, STEEL
-
200623-044 WASHERWASHER
-
211623-037 SCREW, CAPSCREW, CAP
-
228002-229 SCREW, CAPSCREW, CAP
-
238050-282 WASHERWASHER
-
242604-516 SLIDE, SPRINGSLIDE, SPRING
-
252604-378 BLOCK, SLIDEBLOCK, SLIDE
-
262604-283 AXLE, WHEEL (REAR)AXLE, WHEEL (REAR)
-
270623-921 WASHERWASHER
-
281604-940 SPACER, WHEEL (REAR)SPACER, WHEEL (REAR)
-
291604-838 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
301704-489 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
318042-486 NUTNUT
-
320623-123 SCREW, CAPSCREW, CAP
-
332604-830 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
348020-223 SCREW, CAPSCREW, CAP
-
351604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
