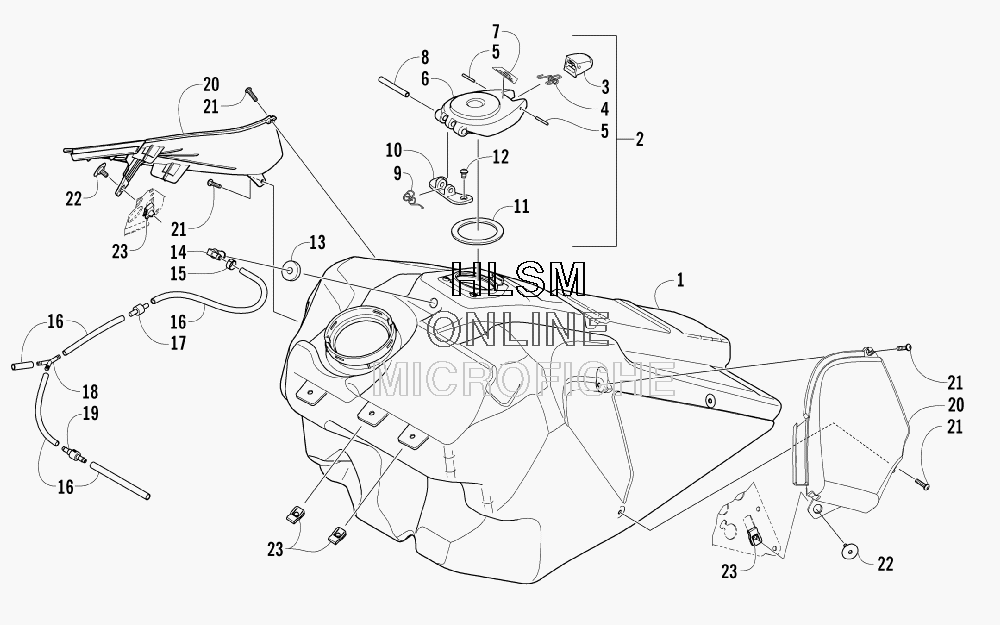

GAS TANK ASSEMBLY для Arctic Cat F8 EFI SNO PRO TONY STEWART EDITION - 2007 года выпуска
-
№АртикулНазвание
-
11670-854 TANK, GAS (INC. 2-14)TANK, GAS (INC. 2-14)
-
21670-812 ...CAP, GAS TANK - ASSEMBLY (INC. 3-11)...CAP, GAS TANK - ASSEMBLY (INC. 3-11)
-
31670-835 ......LATCH, GAS TANK CAP......LATCH, GAS TANK CAP
-
41670-839 ......SPRING, LATCH - GAS TANK CAP......SPRING, LATCH - GAS TANK CAP
-
51670-838 ......PIN, LATCH - GAS TANK CAP......PIN, LATCH - GAS TANK CAP
-
61670-890 ......CAP, GAS TANK (INC. 7)......CAP, GAS TANK (INC. 7)
-
77611-810 .........DECAL, GAS TANK CAP.........DECAL, GAS TANK CAP
-
81670-817 ......PIN, GAS TANK CAP......PIN, GAS TANK CAP
-
91670-837 ......SPRING, HINGE - GAS TANK CAP......SPRING, HINGE - GAS TANK CAP
-
101670-814 ......HINGE, GAS TANK CAP......HINGE, GAS TANK CAP
-
111670-816 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
128479-365 ...SCREW, MACHINE...SCREW, MACHINE
-
131670-325 ...GROMMET...GROMMET
-
141670-494 ...FITTING, ELBOW...FITTING, ELBOW
-
151623-233 CLAMP, HOSECLAMP, HOSE
-
166101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
166101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
170610-059 VALVE, CHECKVALVE, CHECK
-
180670-921 Y-FITTINGY-FITTING
-
191670-913 VALVE, PRESSURE-RELIEFVALVE, PRESSURE-RELIEF
-
203706-408 KNEE PAD, RIGHTKNEE PAD, RIGHT
-
203706-409 KNEE PAD, LEFTKNEE PAD, LEFT
-
218470-510 SCREW, MACHINESCREW, MACHINE
-
220423-101 SCREW, BODYSCREW, BODY
-
230423-577 CLIP, U-NUTCLIP, U-NUT
