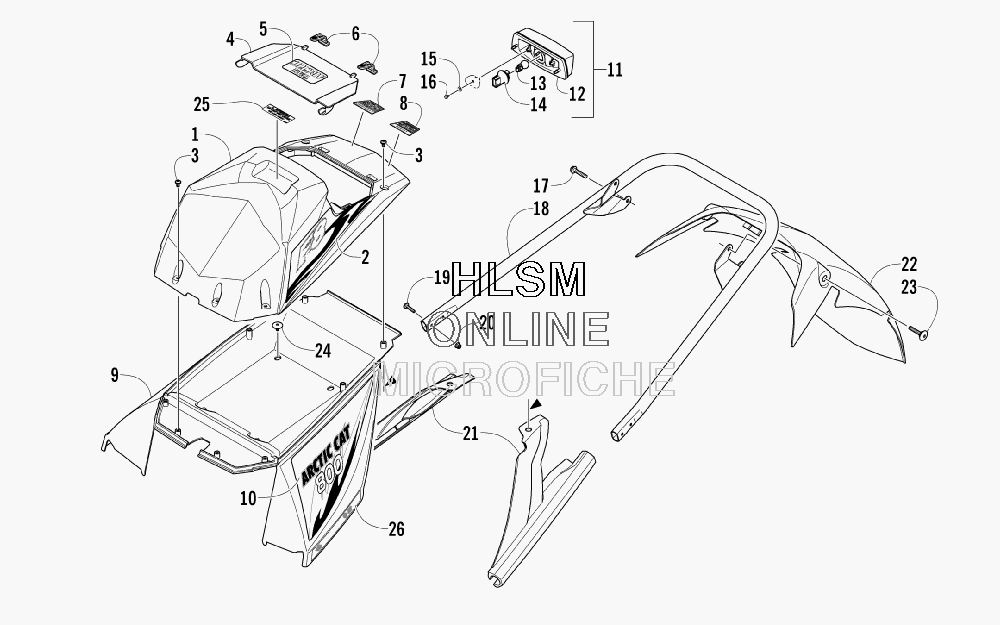

REAR BUMPER- STORAGE BOX- AND TAILLIGHT ASSEMBLY для Arctic Cat F8 EFI SNO PRO TONY STEWART EDITION - 2007 года выпуска
-
№АртикулНазвание
-
14606-580 BOX, STORAGE - REAR - ORANGEBOX, STORAGE - REAR - ORANGE
-
27611-772 DECAL, REAR STORAGE BOX - RIGHTDECAL, REAR STORAGE BOX - RIGHT
-
27611-773 DECAL, REAR STORAGE BOX - LEFTDECAL, REAR STORAGE BOX - LEFT
-
31623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
44606-734 LID, REAR STORAGE BOX - ORANGELID, REAR STORAGE BOX - ORANGE
-
57611-774 DECAL, LID - REAR STORAGE BOXDECAL, LID - REAR STORAGE BOX
-
64606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
77611-432 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
87611-433 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
93706-619 FENDER, REAR - TUNNELFENDER, REAR - TUNNEL
-
107611-776 DECAL, REAR FENDER - RIGHTDECAL, REAR FENDER - RIGHT
-
107611-777 DECAL, REAR FENDER - LEFTDECAL, REAR FENDER - LEFT
-
110509-022 TAILLIGHT W/SOCKET ASSEMBLY (INC. 12-14)TAILLIGHT W/SOCKET ASSEMBLY (INC. 12-14)
-
120509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
130409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
140409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
158050-127 WASHERWASHER
-
160623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
171623-428 SCREW, CAPSCREW, CAP
-
181707-103 BUMPER, REARBUMPER, REAR
-
198476-630 SCREW, MACHINESCREW, MACHINE
-
208427-602 NUT, LOCKNUT, LOCK
-
214606-728 PANEL, FILLER - SNOWFLAP - RIGHTPANEL, FILLER - SNOWFLAP - RIGHT
-
214606-729 PANEL, FILLER - SNOWFLAP - LEFTPANEL, FILLER - SNOWFLAP - LEFT
-
223706-669 SNOWFLAPSNOWFLAP
-
231623-532 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
240423-101 SCREW, BODYSCREW, BODY
-
257611-902 DECAL, SEAT ADJUSTMENTDECAL, SEAT ADJUSTMENT
-
268611-182 DECAL, REFLECTOR - RIGHTDECAL, REFLECTOR - RIGHT
-
268611-183 DECAL, REFLECTOR - LEFTDECAL, REFLECTOR - LEFT
