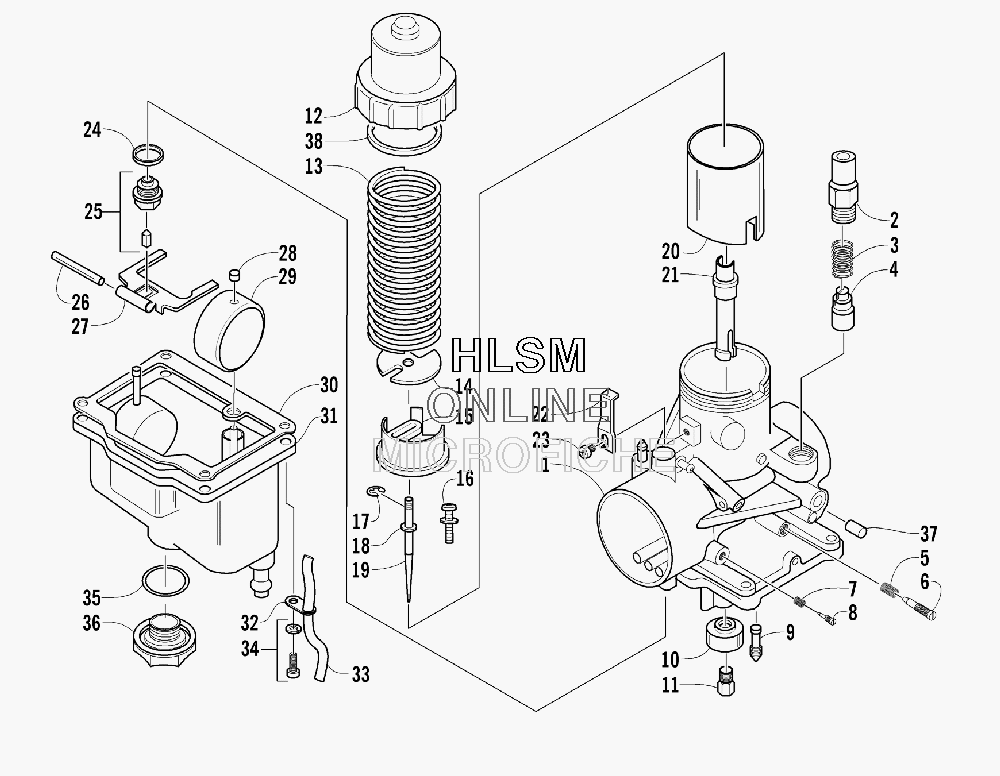

CARBURETOR для Arctic Cat PANTHER 370 (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
1670-895 COMPLETE CARBURETOR - VM32-309COMPLETE CARBURETOR - VM32-309
-
26505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
36505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
46505-035 STARTER PLUNGERSTARTER PLUNGER
-
56505-021 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
66505-101 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
76505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
86505-019 SCREW, PILOT AIRSCREW, PILOT AIR
-
96505-047 PILOT JET 40PILOT JET 40
-
106505-620 RING, BAFFLERING, BAFFLE
-
116505-068 MAIN JET 250**MAIN JET 250**
-
126505-558 TOP, MIXING BODYTOP, MIXING BODY
-
136505-562 SPRING, PISTON VALVESPRING, PISTON VALVE
-
146505-630 PLATEPLATE
-
156505-556 BLOCK, MAGNETBLOCK, MAGNET
-
166505-559 SCREW W/WASHERSCREW W/WASHER
-
176505-610 E-CLIPE-CLIP
-
186505-437 WASHER, E-CLIPWASHER, E-CLIP
-
196505-215 JET NEEDLE 6DH7-3JET NEEDLE 6DH7-3
-
206505-614 PISTON VALVE CA 2.5PISTON VALVE CA 2.5
-
216506-405 NEEDLE JET P-5M (953)NEEDLE JET P-5M (953)
-
226505-186 PLATEPLATE
-
236505-036 SCREW W/SPRING WASHERSCREW W/SPRING WASHER
-
246505-024 WASHERWASHER
-
256505-160 NEEDLE VALVE ASSEMBLY 1.5NEEDLE VALVE ASSEMBLY 1.5
-
266505-153 PIN, FLOAT ARMPIN, FLOAT ARM
-
276505-027 ARM, FLOATARM, FLOAT
-
286505-010 CAPCAP
-
296505-009 FLOATFLOAT
-
306505-030 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
316505-631 CHAMBER, FLOATCHAMBER, FLOAT
-
326505-608 PLATE, HOSEPLATE, HOSE
-
336505-629 HOSEHOSE
-
346505-014 SCREW W/SPRING WASHERSCREW W/SPRING WASHER
-
356505-622 O-RINGO-RING
-
366505-617 SCREW, DRAINSCREW, DRAIN
-
376505-028 CAPCAP
-
386505-607 WASHERWASHER
