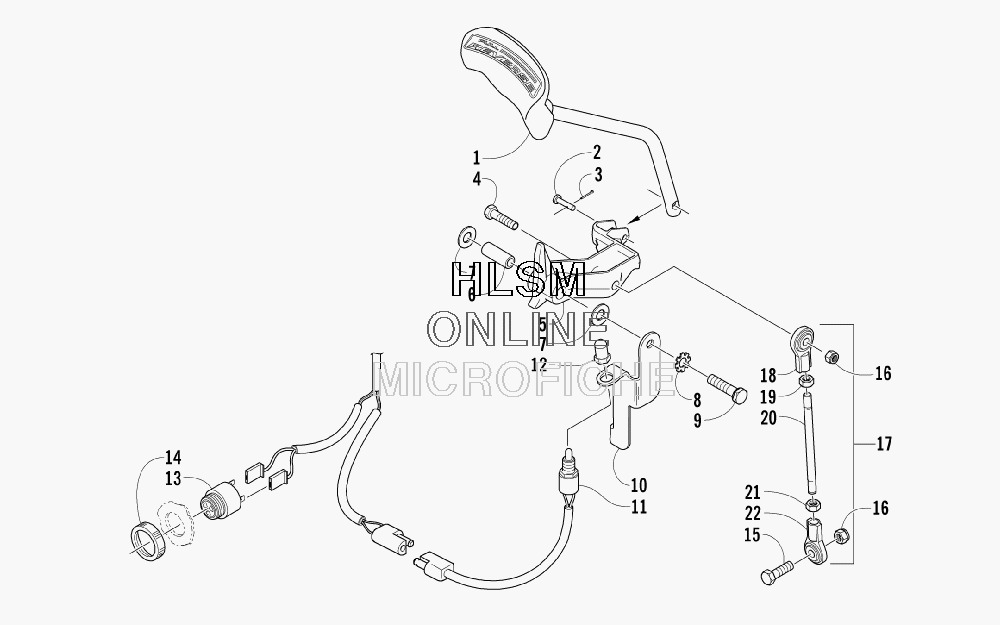

REVERSE SHIFT LEVER ASSEMBLY для Arctic Cat PANTHER 370 (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
10602-978 LEVERLEVER
-
20623-641 PIN, CLEVISPIN, CLEVIS
-
30117-868 PIN, COTTERPIN, COTTER
-
48002-137 SCREW, CAPSCREW, CAP
-
50702-743 SHIFT PIVOTSHIFT PIVOT
-
61602-830 AXLEAXLE
-
78050-247 WASHERWASHER
-
88053-242 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
91623-557 SCREW, CAPSCREW, CAP
-
100702-465 BRACKET, REVERSE SWITCHBRACKET, REVERSE SWITCH
-
110630-011 SWITCH, ALARMSWITCH, ALARM
-
120630-013 BOOT, SWITCHBOOT, SWITCH
-
130630-010 ALARM, REVERSE (INC. 14)ALARM, REVERSE (INC. 14)
-
140630-017 ...RING, RETAINING...RING, RETAINING
-
158002-132 SCREW, CAPSCREW, CAP
-
168040-426 NUT, LOCKNUT, LOCK
-
170702-347 LINKAGE, SHIFTING - ASSEMBLY (INC. 18-22)LINKAGE, SHIFTING - ASSEMBLY (INC. 18-22)
-
180602-305 ...ROD END - LEFT...ROD END - LEFT
-
190623-260 ...NUT, JAM - LEFT...NUT, JAM - LEFT
-
210123-144 ...NUT, JAM - RIGHT...NUT, JAM - RIGHT
-
220602-322 ...ROD END - RIGHT...ROD END - RIGHT
