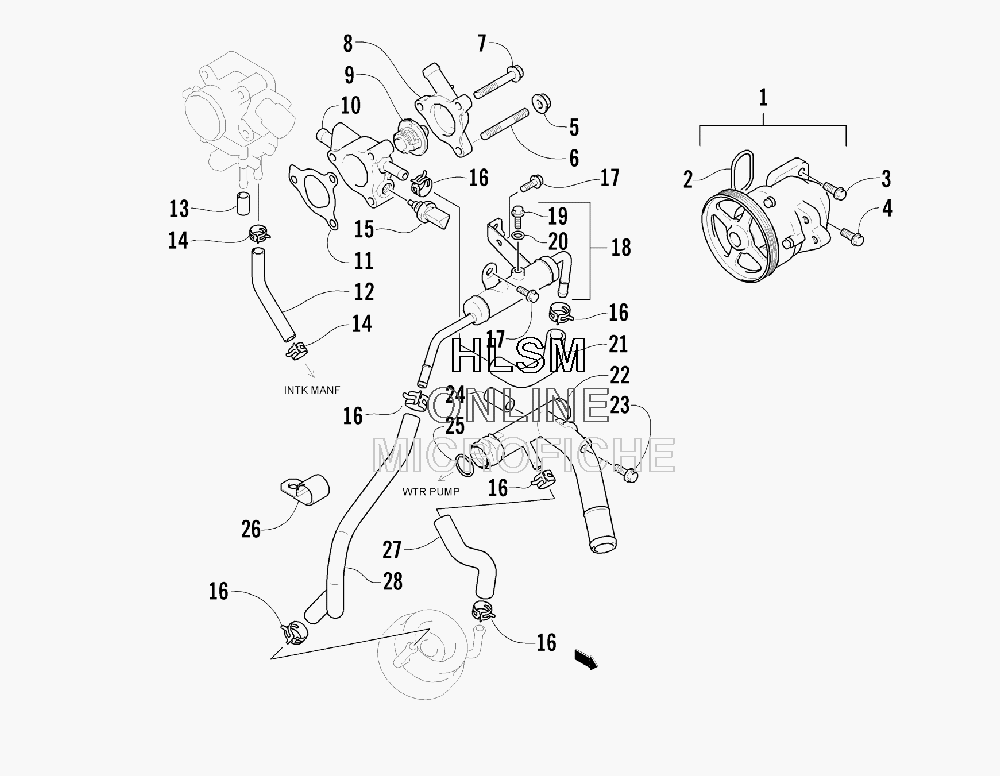

WATER PUMP AND THERMOSTAT ASSEMBLIES для Arctic Cat PANTHER 660 TRAIL - 2007 года выпуска
-
№АртикулНазвание
-
13007-033 WATER PUMP (INC. 2)WATER PUMP (INC. 2)
-
23006-953 ...O-RING...O-RING
-
33007-397 BOLTBOLT
-
43007-396 BOLTBOLT
-
53007-390 NUTNUT
-
63007-398 BOLT, STUDBOLT, STUD
-
73007-408 BOLTBOLT
-
83006-228 CAP, THERMOSTATCAP, THERMOSTAT
-
93006-230 THERMOSTATTHERMOSTAT
-
103006-836 CASE, THERMOSTATCASE, THERMOSTAT
-
113006-232 GASKETGASKET
-
123006-600 HOSE - THROTTLE BODY/INTAKE MANIFOLDHOSE - THROTTLE BODY/INTAKE MANIFOLD
-
133006-120 PLUGPLUG
-
143006-128 CLAMP, HOSECLAMP, HOSE
-
153006-212 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
163006-602 CLAMP, HOSECLAMP, HOSE
-
173007-371 BOLTBOLT
-
183006-839 TANK, WATER (INC. 19-20)TANK, WATER (INC. 19-20)
-
193006-598 ...UNION, AIR VENT...UNION, AIR VENT
-
203006-599 ...GASKET...GASKET
-
213006-595 HOSE - THERMOSTAT CASE/WATER TANKHOSE - THERMOSTAT CASE/WATER TANK
-
223006-594 PIPE, WATER INLETPIPE, WATER INLET
-
233007-399 BOLTBOLT
-
243006-114 SPACERSPACER
-
253006-234 O-RINGO-RING
-
263006-603 CLAMP, HOSECLAMP, HOSE
-
273006-596 HOSE - OIL COOLER/INLET PIPEHOSE - OIL COOLER/INLET PIPE
-
283006-601 HOSE - WATER TANK/OIL COOLERHOSE - WATER TANK/OIL COOLER
