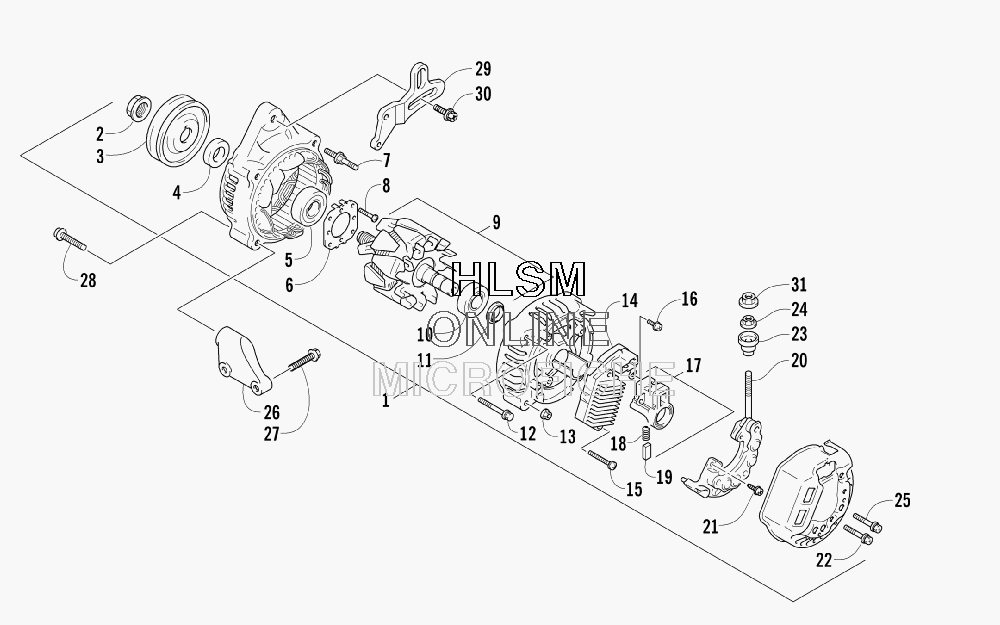

ALTERNATOR ASSEMBLY для Arctic Cat T660 TOURING (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13006-261 ALTERNATOR ASSEMBLY (INC. 2-25)ALTERNATOR ASSEMBLY (INC. 2-25)
-
23006-276 ...NUT...NUT
-
33006-250 ...PULLEY...PULLEY
-
43006-277 ...SPACER...SPACER
-
53006-263 ...BEARING...BEARING
-
63006-264 ...RETAINER, BEARING...RETAINER, BEARING
-
73006-266 ...BOLT, STUD...BOLT, STUD
-
83006-265 ...SCREW...SCREW
-
93006-610 ...ROTOR ASSEMBLY (INC. 10-11)...ROTOR ASSEMBLY (INC. 10-11)
-
103006-267 ......BEARING......BEARING
-
113006-268 ......COVER, BEARING......COVER, BEARING
-
123006-272 ...BOLT...BOLT
-
133004-853 ...NUT...NUT
-
143006-841 ...REGULATOR, ALTERNATOR - ASSEMBLY...REGULATOR, ALTERNATOR - ASSEMBLY
-
153004-379 ...SCREW...SCREW
-
160694-025 ...SCREW...SCREW
-
173006-612 ...BRUSH HOLDER ASSEMBLY (INC. 18-19)...BRUSH HOLDER ASSEMBLY (INC. 18-19)
-
183006-271 ......SPRING, BRUSH......SPRING, BRUSH
-
193006-270 ......BRUSH......BRUSH
-
203006-611 ...RECTIFIER ASSEMBLY...RECTIFIER ASSEMBLY
-
213004-645 ...SCREW...SCREW
-
223006-274 ...BOLT...BOLT
-
233006-262 ...INSULATOR, TERMINAL...INSULATOR, TERMINAL
-
243004-851 ...NUT...NUT
-
253006-613 ...BOLT...BOLT
-
263006-144 BRACKET, ALTERNATORBRACKET, ALTERNATOR
-
273007-401 BOLTBOLT
-
283006-376 BOLTBOLT
-
293006-143 ARM, ADJUSTER - ALTERNATORARM, ADJUSTER - ALTERNATOR
-
303006-108 BOLTBOLT
-
313007-373 NUTNUT
