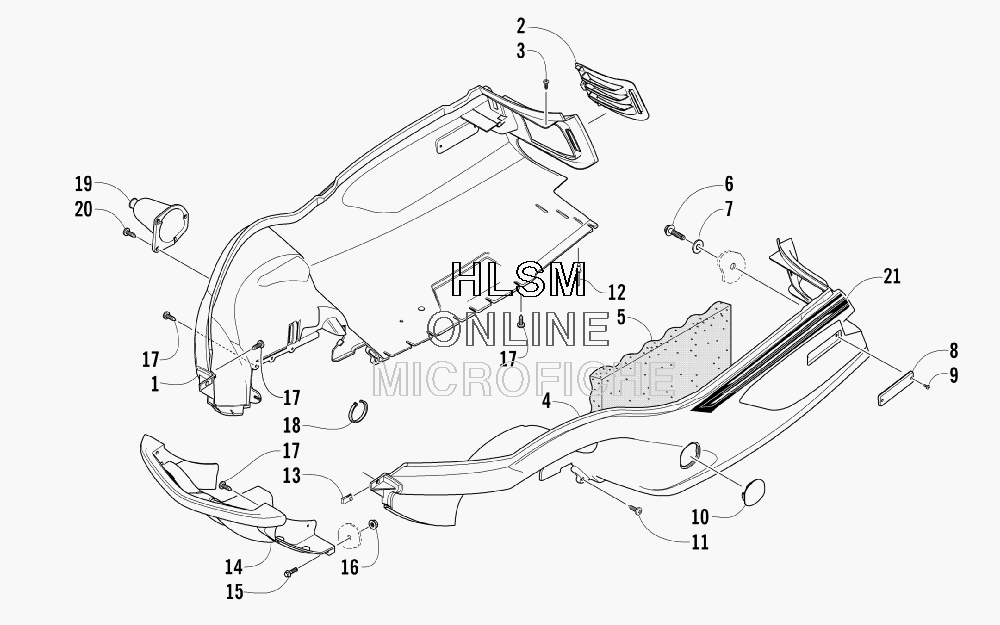

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat T660 TOURING (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13706-320 BELLY PAN - RIGHT - BLACKBELLY PAN - RIGHT - BLACK
-
21606-044 LOUVER, AIR-INTAKE - RIGHT - BLACKLOUVER, AIR-INTAKE - RIGHT - BLACK
-
21606-045 LOUVER, AIR-INTAKE - LEFT - BLACKLOUVER, AIR-INTAKE - LEFT - BLACK
-
30623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
42706-681 BELLY PAN - LEFT - BLACKBELLY PAN - LEFT - BLACK
-
50617-315 FOAM, BELLY PAN - LEFTFOAM, BELLY PAN - LEFT
-
60623-647 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70623-184 WASHERWASHER
-
80606-526 REFLECTOR, FRONT - AMBERREFLECTOR, FRONT - AMBER
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
101606-767 PANEL, ACCESS - DRIVE CLUTCH - BLACKPANEL, ACCESS - DRIVE CLUTCH - BLACK
-
110623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
128061-508 RIVETRIVET
-
130623-427 NUT, UNUT, U
-
141606-949 BUMPER, FRONTBUMPER, FRONT
-
158020-040 SCREW, CAPSCREW, CAP
-
168048-366 NUT, LOCKNUT, LOCK
-
171623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
190605-332 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
190605-333 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
200623-564 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
217611-494 DECAL, BELLY PAN - RIGHTDECAL, BELLY PAN - RIGHT
-
217611-495 DECAL, BELLY PAN - LEFTDECAL, BELLY PAN - LEFT
