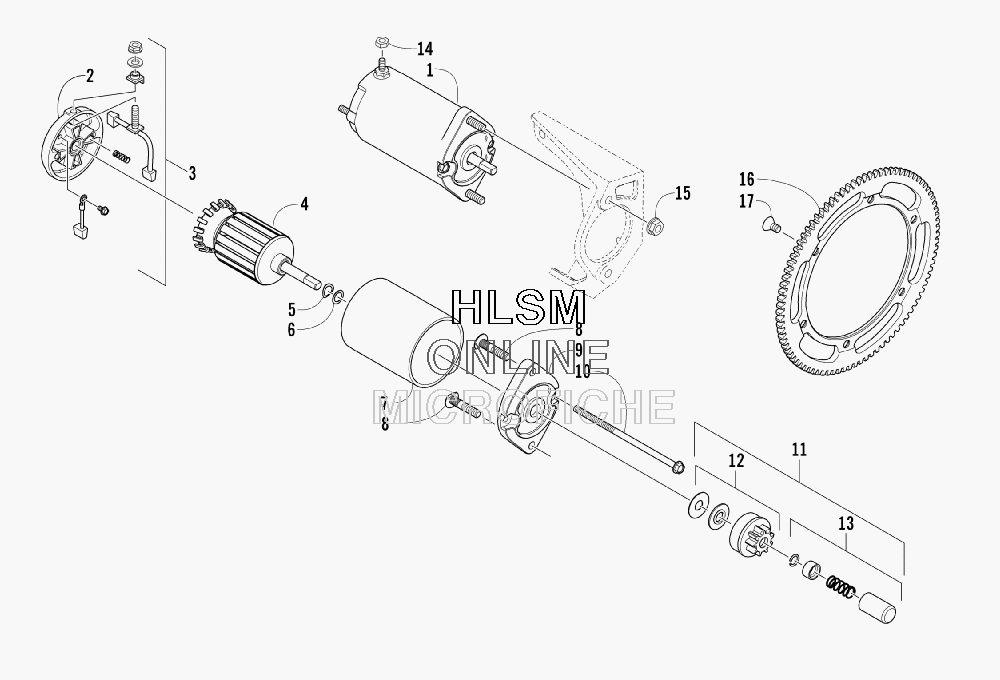

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat Z 370 (ORANGE LX) - 2007 года выпуска
-
№АртикулНазвание
-
1639-908 ELECTRIC START KITELECTRIC START KIT
-
10745-257 MOTOR, STARTER (INC. 2-13)MOTOR, STARTER (INC. 2-13)
-
20645-277 ...CAP, COMMUTATOR (INC. 3)...CAP, COMMUTATOR (INC. 3)
-
30645-275 ......KIT, BRUSH AND SPRING......KIT, BRUSH AND SPRING
-
40645-189 ...ARMATURE...ARMATURE
-
50645-126 ...WASHER, WAVE...WASHER, WAVE
-
60645-127 ...WASHER, THRUST...WASHER, THRUST
-
80623-093 ...BOLT, RIBBED...BOLT, RIBBED
-
90645-188 ...CAP, DRIVE...CAP, DRIVE
-
100645-191 ...BOLT, STARTER MOTOR...BOLT, STARTER MOTOR
-
110745-224 ...PINION DRIVE ASSEMBLY (INC. 12-13)...PINION DRIVE ASSEMBLY (INC. 12-13)
-
120745-229 ......KIT, PINION DRIVE......KIT, PINION DRIVE
-
130645-186 ......KIT, PINION STOPPER......KIT, PINION STOPPER
-
140623-122 NUTNUT
-
158047-426 NUT, LOCKNUT, LOCK
-
160645-168 GEAR, RINGGEAR, RING
-
171623-128 SCREW, MACHINESCREW, MACHINE
