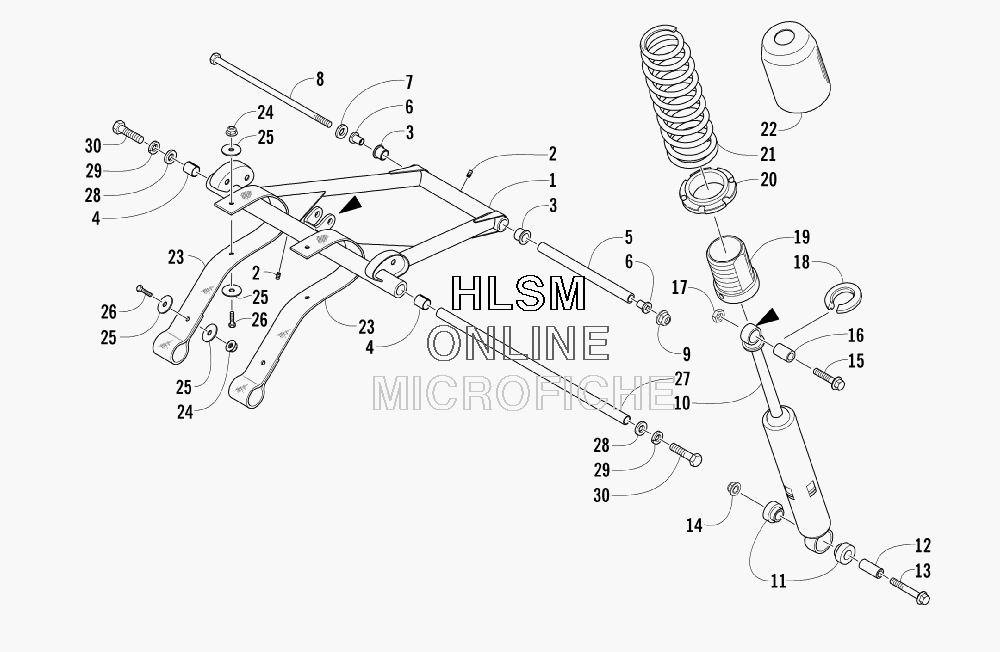

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat Z 370 (ORANGE LX) - 2007 года выпуска
-
№АртикулНазвание
-
11704-335 ARM, FRONT SUSPENSION (INC. 2-4)ARM, FRONT SUSPENSION (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
30104-386 ...BUSHING, FRONT ARM...BUSHING, FRONT ARM
-
40603-083 ...BEARING...BEARING
-
52604-963 TUBE, AXLETUBE, AXLE
-
62603-497 BUSHING, FRONT ARMBUSHING, FRONT ARM
-
70623-664 WASHERWASHER
-
81623-037 SCREW, CAPSCREW, CAP
-
98047-490 NUT, LOCKNUT, LOCK
-
101604-995 SHOCK ABSORBER, FRONT ARMSHOCK ABSORBER, FRONT ARM
-
111604-384 BUSHING, SHOCKBUSHING, SHOCK
-
121604-329 AXLE, PIVOT - SHOCKAXLE, PIVOT - SHOCK
-
138020-228 SCREW, CAPSCREW, CAP
-
148047-486 NUT, LOCKNUT, LOCK
-
158020-226 SCREW, CAPSCREW, CAP
-
161603-531 AXLE, SHOCK - FRONT ARMAXLE, SHOCK - FRONT ARM
-
178041-486 NUT, LOCKNUT, LOCK
-
181603-889 RETAINER, SPRINGRETAINER, SPRING
-
190603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
200603-259 NUT, RETAINER - SPRINGNUT, RETAINER - SPRING
-
211603-018 SPRING, COMPRESSIONSPRING, COMPRESSION
-
220604-590 COVER, SHOCKCOVER, SHOCK
-
232604-305 STRAP, LIMITERSTRAP, LIMITER
-
248047-366 NUT, LOCKNUT, LOCK
-
250623-184 WASHERWASHER
-
268002-043 SCREW, CAPSCREW, CAP
-
270114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
280623-044 WASHERWASHER
-
298051-277 WASHER, LOCKWASHER, LOCK
-
308002-224 SCREW, CAPSCREW, CAP
