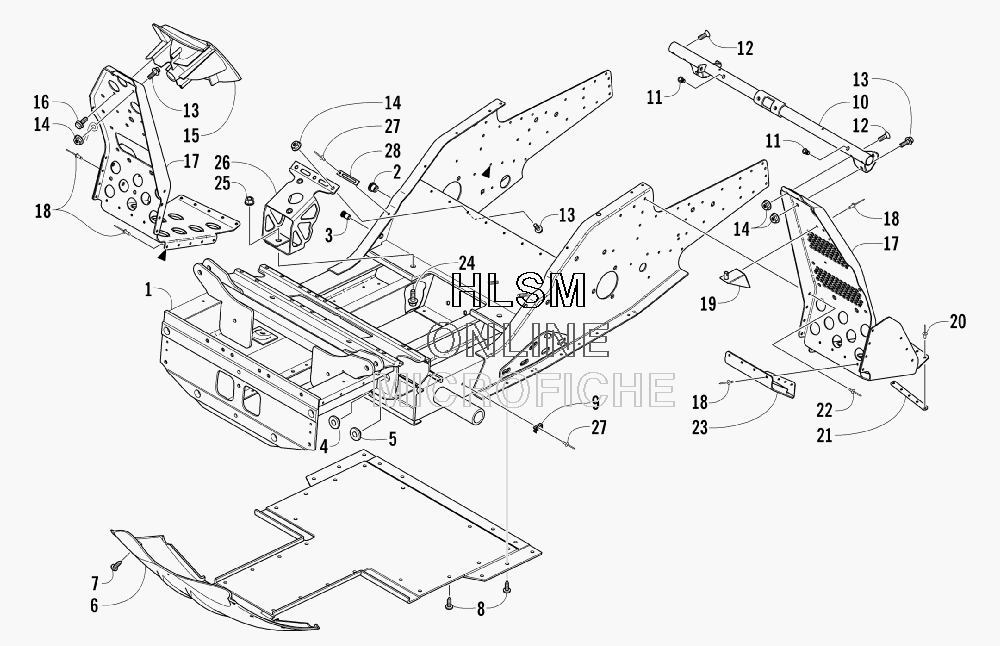

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat BEARCAT 570 INTERNATIONAL - 2008 года выпуска
-
№АртикулНазвание
-
10707-731 CHASSIS ASSEMBLY (INC. 2-5)CHASSIS ASSEMBLY (INC. 2-5)
-
20623-581 ...INSERT...INSERT
-
30623-582 ...INSERT...INSERT
-
40607-420 ...INSERT, LOWER A-ARM MOUNT...INSERT, LOWER A-ARM MOUNT
-
50607-421 ...INSERT, UPPER A-ARM MOUNT...INSERT, UPPER A-ARM MOUNT
-
63606-534 BELLY PAN - CENTERBELLY PAN - CENTER
-
70623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
81623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
100705-866 SUPPORT, STEERING (INC. 11)SUPPORT, STEERING (INC. 11)
-
110623-779 ...INSERT...INSERT
-
128019-614 SCREW, MACHINESCREW, MACHINE
-
138020-040 SCREW, CAPSCREW, CAP
-
148047-366 NUT, LOCKNUT, LOCK
-
151706-099 CUP, RECOIL ROPECUP, RECOIL ROPE
-
160623-297 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
172606-444 FOOTREST - RIGHTFOOTREST - RIGHT
-
172606-733 FOOTREST - LEFTFOOTREST - LEFT
-
180623-166 RIVETRIVET
-
190705-173 BRACKET, MOUNTING - BELT GUARDBRACKET, MOUNTING - BELT GUARD
-
200623-282 RIVETRIVET
-
212706-110 PLATE, BACKING - FOOTRESTPLATE, BACKING - FOOTREST
-
220623-341 RIVETRIVET
-
232606-458 PLATE, BACKING - RIGHTPLATE, BACKING - RIGHT
-
232606-459 PLATE, BACKING - LEFTPLATE, BACKING - LEFT
-
248020-131 SCREW, CAPSCREW, CAP
-
258047-426 NUT, LOCKNUT, LOCK
-
260708-398 BRACKET, ENGINE MOUNTINGBRACKET, ENGINE MOUNTING
-
278060-506 RIVETRIVET
-
283002-964 CLAMP, WIRECLAMP, WIRE
