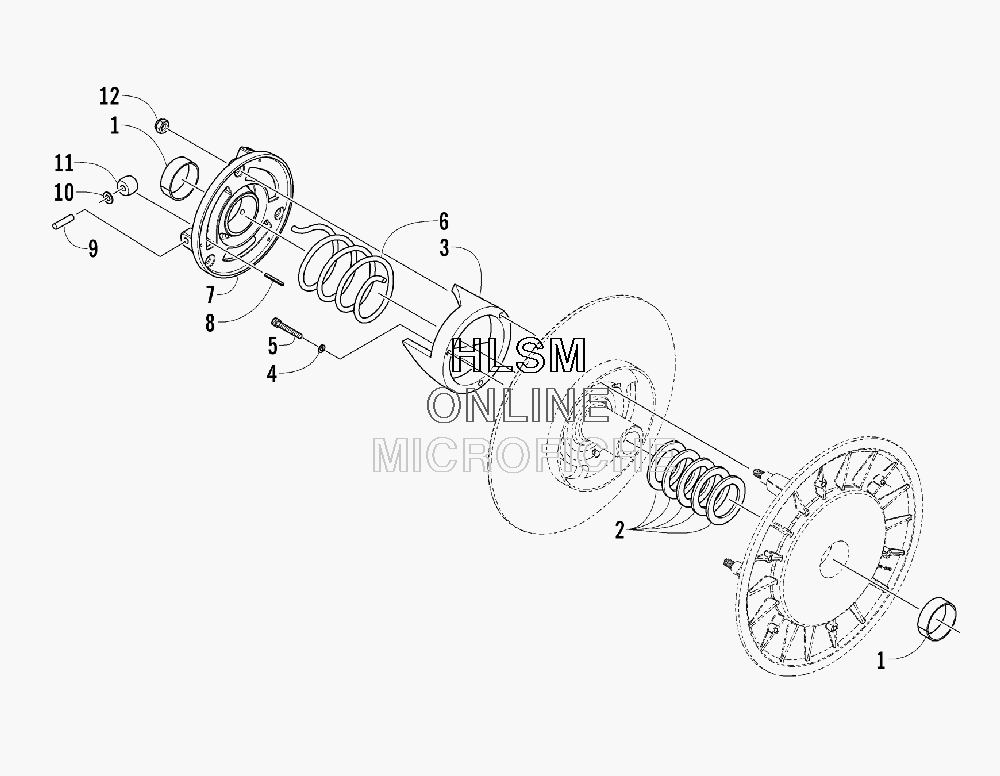

DRIVEN CLUTCH для Arctic Cat PANTHER 370 TOURING - 2008 года выпуска

№

Артикул

Название
0726-230 COMPLETE DRIVEN CLUTCH ASSEMBLY

COMPLETE DRIVEN CLUTCH ASSEMBLY

130 ₽
1

0648-009 BEARING

BEARING

2 910 ₽
2

0148-198 WASHER, THRUST: 0.030 IN.

WASHER, THRUST: 0.030 IN.

250 ₽
2

0148-199 WASHER, THRUST: 0.060 IN.

WASHER, THRUST: 0.060 IN.

480 ₽
3

0648-014 BRACKET, TORQUE 49?

BRACKET, TORQUE 49?

23 290 ₽
3

0648-026 BRACKET, TORQUE 42...(OVER 9,000 FT ALT.)

BRACKET, TORQUE 42...(OVER 9,000 FT ALT.)

10 810 ₽
4

8051-152 WASHER, LOCK

WASHER, LOCK

20 ₽
5

8005-404 SCREW, SOCKET HEAD

SCREW, SOCKET HEAD

150 ₽
6

0648-114 SPRING, DRIVEN CLUTCH - RED/WHITE

SPRING, DRIVEN CLUTCH - RED/WHITE

12 270 ₽
7

0748-018 PLATE, ROLLER - ASSEMBLY (INC. ONE NO. 1 AND 8-11)

PLATE, ROLLER - ASSEMBLY (INC. ONE NO. 1 AND 8-11)

14 550 ₽
8

8070-224 ...PIN, SPRING

...PIN, SPRING

60 ₽
9

0648-097 ...PIN, CAM ROLLER

...PIN, CAM ROLLER

440 ₽
10

0648-082 ...WASHER, THRUST - CAM ROLLER

...WASHER, THRUST - CAM ROLLER

290 ₽
11

0648-079 ...ROLLER, CAM

...ROLLER, CAM

2 280 ₽
12

8040-426 NUT, LOCK

NUT, LOCK

60 ₽
