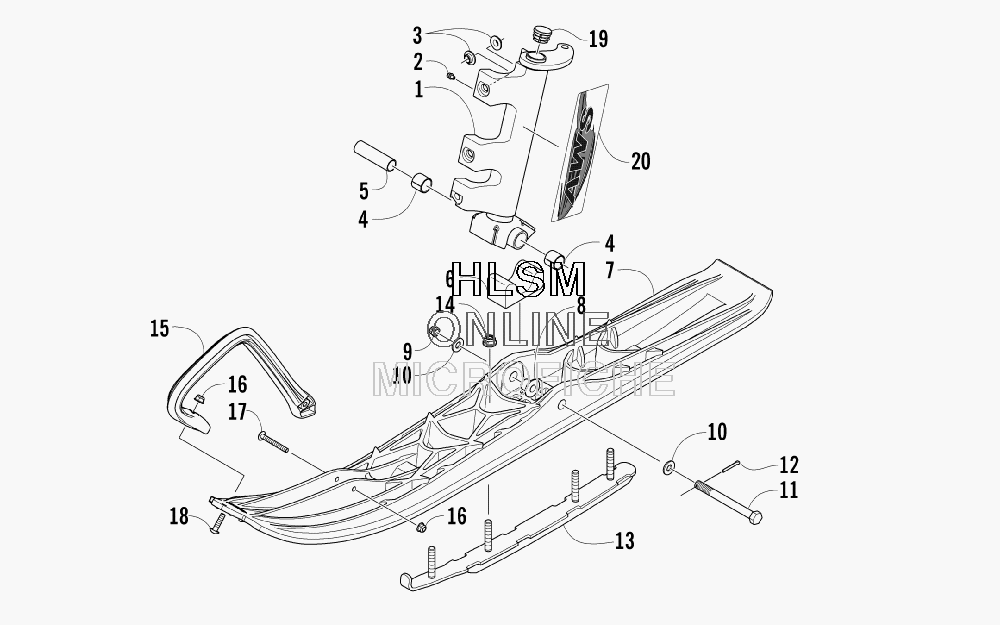

SKI AND SPINDLE ASSEMBLY для Arctic Cat PANTHER 370 TOURING - 2008 года выпуска
-
№АртикулНазвание
-
12703-006 SPINDLE, STEERING - RIGHT - PLATINUM (INC. 2-4)SPINDLE, STEERING - RIGHT - PLATINUM (INC. 2-4)
-
12703-007 SPINDLE, STEERING - LEFT - PLATINUM (INC. 2-4)SPINDLE, STEERING - LEFT - PLATINUM (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
30603-647 ...INSERT, SPINDLE...INSERT, SPINDLE
-
40603-158 ...BEARING...BEARING
-
52603-548 AXLE, SPINDLEAXLE, SPINDLE
-
60603-036 DAMPER, SKIDAMPER, SKI
-
72603-599 SKI - BLACKSKI - BLACK
-
82603-397 INSERT, SKIINSERT, SKI
-
90123-296 NUT, LOCKNUT, LOCK
-
100623-728 WASHERWASHER
-
110623-776 SCREW, CAPSCREW, CAP
-
120123-458 PIN, COTTERPIN, COTTER
-
131703-848 WEARBAR - RIGHTWEARBAR - RIGHT
-
131703-849 WEARBAR - LEFTWEARBAR - LEFT
-
148047-486 NUT, LOCKNUT, LOCK
-
152603-598 HANDLE, PLASTIC SKI - BLACKHANDLE, PLASTIC SKI - BLACK
-
168047-366 NUT, LOCKNUT, LOCK
-
171623-688 SCREW, MACHINESCREW, MACHINE
-
181623-689 SCREW, MACHINESCREW, MACHINE
-
190623-831 CAP, SPINDLECAP, SPINDLE
-
207611-818 DECAL, SPINDLE - RIGHTDECAL, SPINDLE - RIGHT
-
207611-819 DECAL, SPINDLE - LEFTDECAL, SPINDLE - LEFT
