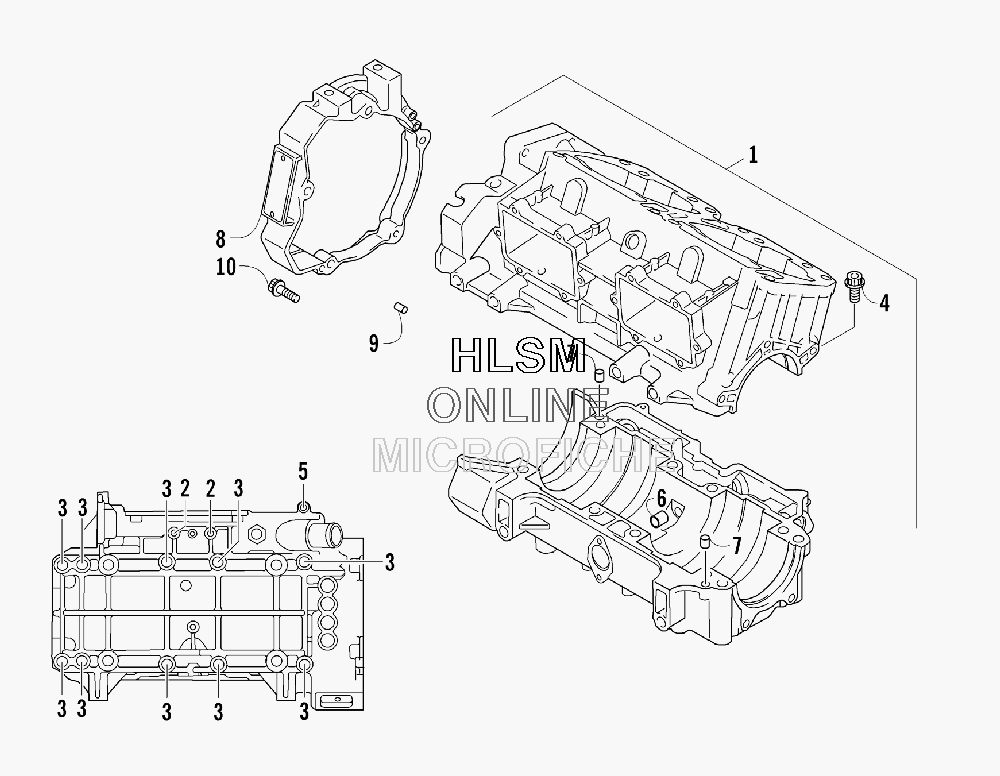

CRANKCASE ASSEMBLY для Arctic Cat AC F1000 EFI SNO PRO - 2009 года выпуска
-
№АртикулНазвание
-
13007-620 CRANKCASE (INC. 2-7)CRANKCASE (INC. 2-7)
-
23006-650 ...SCREW, CAP...SCREW, CAP
-
33007-252 ...SCREW, CAP...SCREW, CAP
-
43007-445 ...SCREW, CAP...SCREW, CAP
-
53007-381 ...SCREW, CAP...SCREW, CAP
-
63007-253 ...BUSHING...BUSHING
-
73005-206 ...PIN, DOWEL...PIN, DOWEL
-
83007-254 CASE, MAGNETOCASE, MAGNETO
-
93006-547 PIN, DOWELPIN, DOWEL
-
103007-718 SCREW, CAPSCREW, CAP
