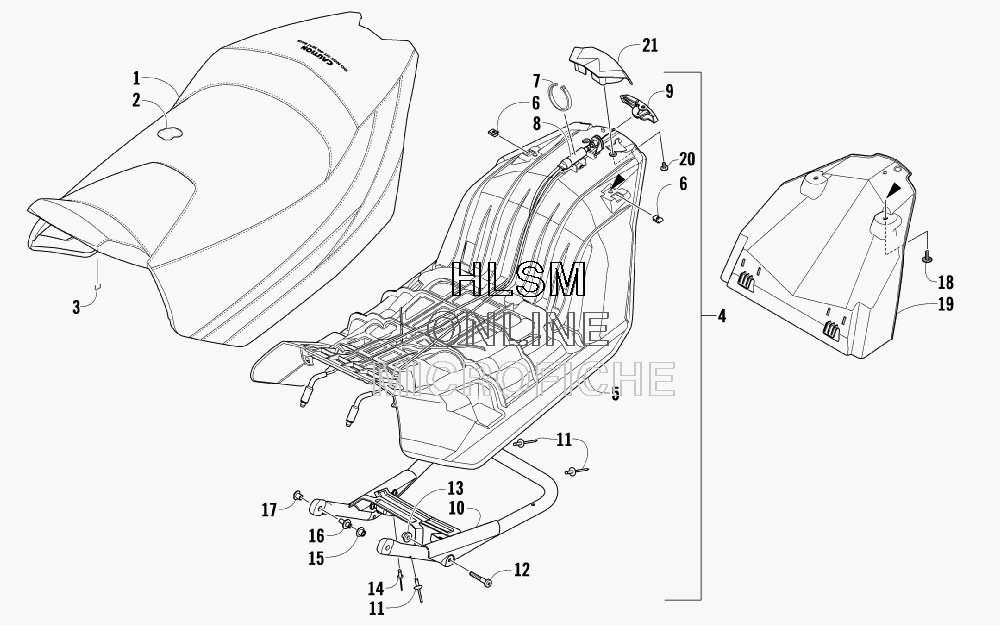

SEAT ASSEMBLY для Arctic Cat AC F1000 EFI SNO PRO - 2009 года выпуска
-
№АртикулНазвание
-
-7800-158 COMPLETE SEAT ASSEMBLY GREENCOMPLETE SEAT ASSEMBLY GREEN
-
-7800-159 COMPLETE SEAT ASSEMBLY ORANGECOMPLETE SEAT ASSEMBLY ORANGE
-
14706-242 COVER, SEAT - GREENCOVER, SEAT - GREEN
-
14706-243 COVER, SEAT - ORANGE (ORANGE)COVER, SEAT - ORANGE (ORANGE)
-
20617-570 FOAM, SEATFOAM, SEAT
-
30624-528 STAPLESTAPLE
-
44706-265 SEAT-BASE - ASSEMBLY (INC. 5-17)SEAT-BASE - ASSEMBLY (INC. 5-17)
-
55606-591 ...SEAT-BASE...SEAT-BASE
-
60423-060 ...CLIP, U-NUT...CLIP, U-NUT
-
70123-788 ...TIE, CABLE - 8 IN....TIE, CABLE - 8 IN.
-
85606-592 ...CABLE, SEAT ADJUSTER...CABLE, SEAT ADJUSTER
-
94606-380 ...LEVER, SEAT ADJUSTER CABLE...LEVER, SEAT ADJUSTER CABLE
-
103706-886 ...FRAME, SEAT...FRAME, SEAT
-
118061-688 ...RIVET...RIVET
-
124606-338 ...PIN, SLIDE - BOTTOM...PIN, SLIDE - BOTTOM
-
131623-524 ...WASHER, SLIDE PIN - BOTTOM...WASHER, SLIDE PIN - BOTTOM
-
141623-130 ...RIVET...RIVET
-
151623-525 ...WASHER, SLIDE PIN - TOP...WASHER, SLIDE PIN - TOP
-
164606-339 ...PIN, SLIDE - TOP...PIN, SLIDE - TOP
-
171623-542 ...NUT, SLIDE PIN...NUT, SLIDE PIN
-
180623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
194606-225 PANEL, SEAT-BASEPANEL, SEAT-BASE
-
201623-463 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
214606-345 HOUSING, CABLE - SEAT ADJUSTERHOUSING, CABLE - SEAT ADJUSTER
