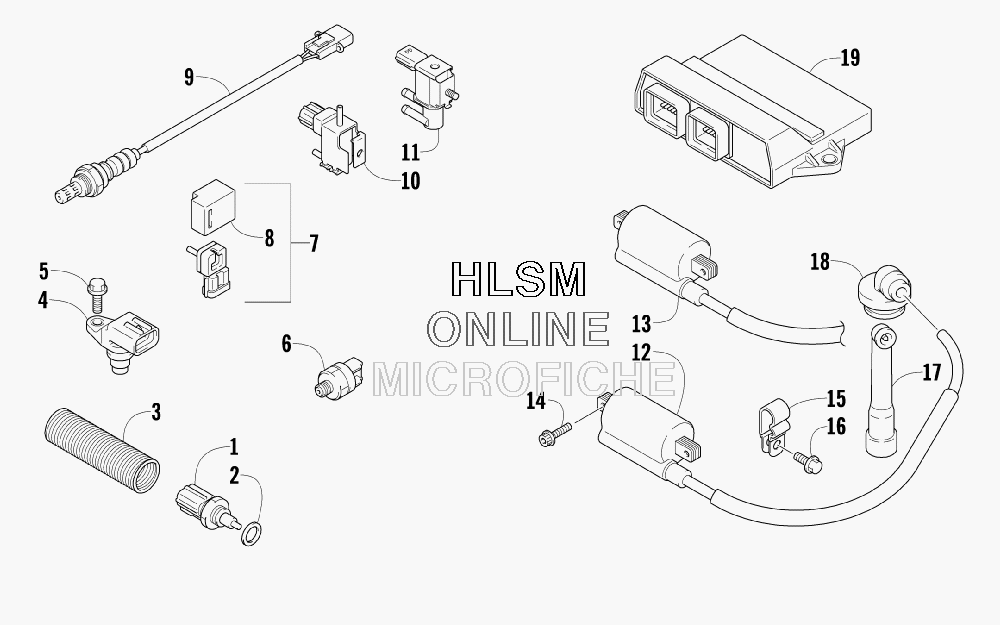

ELECTRICAL ASSEMBLY для Arctic Cat Z1 TURBO SNO PRO - 2009 года выпуска
-
№АртикулНазвание
-
13007-060 SENSOR, COOLANT TEMPERATURESENSOR, COOLANT TEMPERATURE
-
23530-047 GASKETGASKET
-
33007-218 CONDUITCONDUIT
-
43007-216 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
53007-392 SCREW, CAPSCREW, CAP
-
63006-844 SENSOR, OIL PRESSURESENSOR, OIL PRESSURE
-
73007-517 SENSOR, AIR PRESSURE (INC. 8)SENSOR, AIR PRESSURE (INC. 8)
-
83007-213 ...COVER...COVER
-
93006-588 SENSOR, OXYGENSENSOR, OXYGEN
-
103006-883 VALVE, ABV CONTROLVALVE, ABV CONTROL
-
113007-834 VALVE, WASTE GATE CONTROLVALVE, WASTE GATE CONTROL
-
123007-835 COIL, IGNITION - BOTTOM (LONG)COIL, IGNITION - BOTTOM (LONG)
-
133007-836 COIL, IGNITION - TOP (SHORT)COIL, IGNITION - TOP (SHORT)
-
143007-426 SCREW, CAPSCREW, CAP
-
153007-837 RETAINER, WIRERETAINER, WIRE
-
163007-371 SCREW, CAPSCREW, CAP
-
173007-838 CAP, SPARK PLUGCAP, SPARK PLUG
-
183007-839 SEALSEAL
-
193007-673 ECUECU
