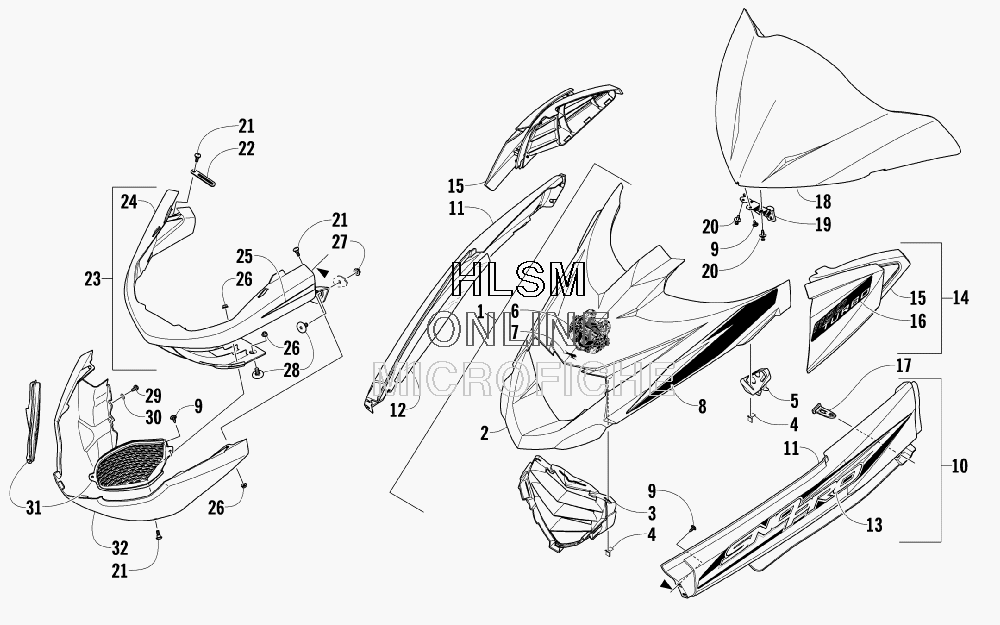

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat Z1 TURBO SNO PRO - 2009 года выпуска

№

Артикул

Название
1

2718-752 HOOD W/DECALS - GREEN (INC. 2-8)

HOOD W/DECALS - GREEN (INC. 2-8)

48 250 ₽
2

7800-450 ...HOOD W/O DECALS - GREEN (INC. 3-5)

...HOOD W/O DECALS - GREEN (INC. 3-5)

52 410 ₽
3

5606-655 ......GRILLE, HOOD - BLACK

......GRILLE, HOOD - BLACK

3 110 ₽
4

1623-765 ......CLIP, RETAINING

......CLIP, RETAINING

230 ₽
5

1623-768 ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT

......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT

3 530 ₽
5

1623-769 ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT

......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT

3 530 ₽
6

8611-671 ...DECAL, HOOD - CREST

...DECAL, HOOD - CREST

13 100 ₽
7

8611-267 ...DECAL, AIRCAT - CHROME

...DECAL, AIRCAT - CHROME

3 110 ₽
8

8611-702 ...DECAL, HOOD - RIGHT

...DECAL, HOOD - RIGHT

6 650 ₽
8

8611-703 ...DECAL, HOOD - LEFT

...DECAL, HOOD - LEFT

6 650 ₽
9

1623-129 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
10

2718-750 SPAR, FRONT W/DECALS - RIGHT (INC. 11-13)

SPAR, FRONT W/DECALS - RIGHT (INC. 11-13)

27 870 ₽
10

2718-751 SPAR, FRONT W/DECALS - LEFT (INC. 11 AND 13)

SPAR, FRONT W/DECALS - LEFT (INC. 11 AND 13)

27 870 ₽
11

4706-322 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK

...SPAR, FRONT W/O DECALS - RIGHT - BLACK

22 870 ₽
11

4706-323 ...SPAR, FRONT W/O DECALS - LEFT - BLACK

...SPAR, FRONT W/O DECALS - LEFT - BLACK

15 390 ₽
12

4606-934 ...FOIL, SPAR - RIGHT

...FOIL, SPAR - RIGHT

340 ₽
13

8611-448 ...DECAL, FRONT SPAR - RIGHT

...DECAL, FRONT SPAR - RIGHT

17 470 ₽
13

8611-449 ...DECAL, FRONT SPAR - LEFT

...DECAL, FRONT SPAR - LEFT

17 470 ₽
14

2718-754 BEZEL, INTAKE - RIGHT W/DECALS (INC. 15-16)

BEZEL, INTAKE - RIGHT W/DECALS (INC. 15-16)

10 390 ₽
14

2718-755 BEZEL, INTAKE - LEFT W/DECALS (INC. 15-16)

BEZEL, INTAKE - LEFT W/DECALS (INC. 15-16)

10 390 ₽
15

5606-776 ...BEZEL, INTAKE - RIGHT - BLACK

...BEZEL, INTAKE - RIGHT - BLACK

9 980 ₽
15

5606-777 ...BEZEL, INTAKE - LEFT - BLACK

...BEZEL, INTAKE - LEFT - BLACK

9 980 ₽
16

8611-704 ...DECAL, INTAKE BEZEL

...DECAL, INTAKE BEZEL

4 360 ₽
17

4606-926 STRAP, HOLD-DOWN

STRAP, HOLD-DOWN

710 ₽
18

5606-977 WINDSHIELD

WINDSHIELD

20 790 ₽
19

4706-442 BRACKET, WINDSHIELD - HOLD-DOWN

BRACKET, WINDSHIELD - HOLD-DOWN

4 360 ₽
20

0623-362 RIVET, PLASTIC

RIVET, PLASTIC

110 ₽
21

0423-355 SCREW, SHOULDER

SCREW, SHOULDER

150 ₽
22

3002-964 CLAMP, WIRE

CLAMP, WIRE

940 ₽
23

2718-748 BUMPER, FRONT W/DECALS (INC. 24-25)

BUMPER, FRONT W/DECALS (INC. 24-25)

26 620 ₽
24

4706-337 ...BUMPER, FRONT - BLACK

...BUMPER, FRONT - BLACK

24 120 ₽
25

8611-698 ...DECAL, BUMPER - RIGHT

...DECAL, BUMPER - RIGHT

13 930 ₽
25

8611-699 ...DECAL, BUMPER - LEFT

...DECAL, BUMPER - LEFT

6 650 ₽
26

8427-602 NUT, LOCK

NUT, LOCK

440 ₽
27

8424-602 NUT

NUT

40 ₽
28

1623-775 SCREW, SHOULDER

SCREW, SHOULDER

270 ₽
29

0623-966 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

170 ₽
30

8053-242 WASHER, EXTERNAL TOOTH LOCK

WASHER, EXTERNAL TOOTH LOCK

20 ₽
31

4606-604 VENT, BUMPER - RIGHT - BLACK

VENT, BUMPER - RIGHT - BLACK

3 950 ₽
31

4606-605 VENT, BUMPER - LEFT - BLACK

VENT, BUMPER - LEFT - BLACK

3 950 ₽
32

4706-574 FASCIA, BUMPER - LOWER - GREEN

FASCIA, BUMPER - LOWER - GREEN

19 130 ₽
