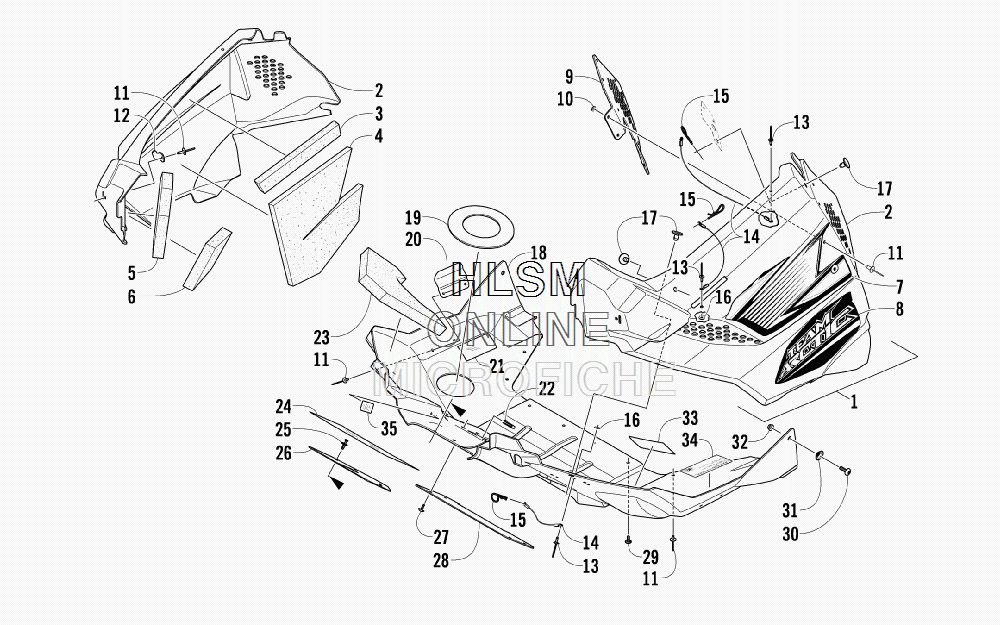

BELLY PAN ASSEMBLY для Arctic Cat 500 SNO PRO - 2010 года выпуска
-
№АртикулНазвание
-
12718-918 PANEL, SIDE - RIGHT W/DECALS (INC. 2-8)PANEL, SIDE - RIGHT W/DECALS (INC. 2-8)
-
12718-919 PANEL, SIDE - LEFT W/DECALS (INC. 2-8)PANEL, SIDE - LEFT W/DECALS (INC. 2-8)
-
22718-730 ...PANEL, SIDE - RIGHT W/O DECALS (INC. 3-6)...PANEL, SIDE - RIGHT W/O DECALS (INC. 3-6)
-
22718-731 ...PANEL, SIDE - LEFT W/O DECALS (INC. 3-6)...PANEL, SIDE - LEFT W/O DECALS (INC. 3-6)
-
30617-574 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
30617-575 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
40617-572 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
40617-573 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
50617-590 ......FOAM, SIDE PANEL - UPPER FORWARD - RIGHT......FOAM, SIDE PANEL - UPPER FORWARD - RIGHT
-
50617-591 ......FOAM, SIDE PANEL - UPPER FORWARD - LEFT......FOAM, SIDE PANEL - UPPER FORWARD - LEFT
-
60617-592 ......FOAM, SIDE PANEL - LOWER FORWARD - RIGHT......FOAM, SIDE PANEL - LOWER FORWARD - RIGHT
-
60617-593 ......FOAM, SIDE PANEL - LOWER FORWARD - LEFT......FOAM, SIDE PANEL - LOWER FORWARD - LEFT
-
79611-020 ...DECAL, PANEL - UPPER - RIGHT...DECAL, PANEL - UPPER - RIGHT
-
79611-021 ...DECAL, PANEL - UPPER - LEFT...DECAL, PANEL - UPPER - LEFT
-
89611-036 ...DECAL, PANEL - LOWER - RIGHT...DECAL, PANEL - LOWER - RIGHT
-
89611-037 ...DECAL, PANEL - LOWER - LEFT...DECAL, PANEL - LOWER - LEFT
-
96606-047 PANEL, REINFORCEMENTPANEL, REINFORCEMENT
-
100123-802 WASHERWASHER
-
118061-708 RIVETRIVET
-
122606-096 HOLD-DOWN, HOOD - RIGHTHOLD-DOWN, HOOD - RIGHT
-
121606-441 HOLD-DOWN, HOOD - LEFTHOLD-DOWN, HOOD - LEFT
-
138060-486 RIVETRIVET
-
140607-447 CABLECABLE
-
150605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
168050-127 WASHERWASHER
-
175606-639 PIN, RETAINERPIN, RETAINER
-
185606-871 BELLY PANBELLY PAN
-
192612-507 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
200607-892 BRACKET, LATCH - BELT GUARDBRACKET, LATCH - BELT GUARD
-
212606-558 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
221623-030 CLIP, U-NUTCLIP, U-NUT
-
230617-586 FOAM, BELLY PANFOAM, BELLY PAN
-
242606-556 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
250623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
265606-954 PANEL, CLOSE-OFFPANEL, CLOSE-OFF
-
270623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
285606-872 COVER, ACCESSCOVER, ACCESS
-
291623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
308477-635 SCREW, MACHINESCREW, MACHINE
-
310623-870 SPACERSPACER
-
328427-602 NUT, LOCKNUT, LOCK
-
331611-565 DECAL, WARNING - CLUTCH GUARDDECAL, WARNING - CLUTCH GUARD
-
348611-995 DECAL, CLUTCHINGDECAL, CLUTCHING
-
352606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
