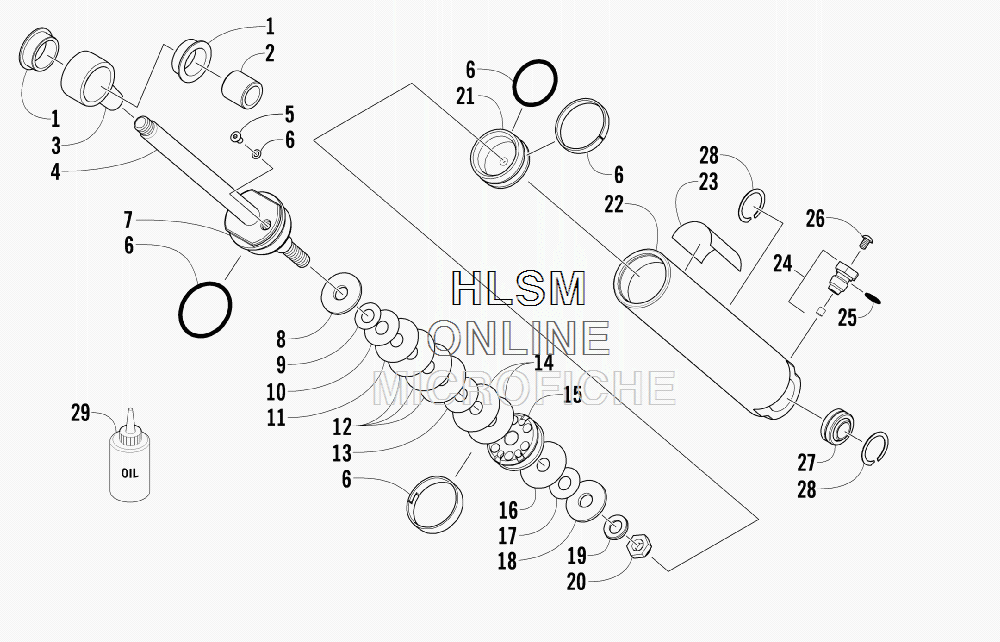

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat 500 SNO PRO - 2010 года выпуска
-
№АртикулНазвание
-
-1704-908 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-222 BUSHING, SHOCKBUSHING, SHOCK
-
22604-223 SLEEVE, EYELETSLEEVE, EYELET
-
30604-893 EYELET, SHOCKEYELET, SHOCK
-
42604-622 ROD, SHOCKROD, SHOCK
-
52604-530 SCREW, MACHINESCREW, MACHINE
-
62604-880 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
72604-627 CAP, SHOCKCAP, SHOCK
-
82603-466 WASHER, TOP OUTWASHER, TOP OUT
-
90603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
100603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
110603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
122604-631 VALVE, 1.600 X 0.010 IN.VALVE, 1.600 X 0.010 IN.
-
130603-342 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
143604-577 VALVE, 1.600 X 0.008 IN.VALVE, 1.600 X 0.008 IN.
-
152604-645 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
162604-632 VALVE, 1.425 X 0.012 IN.VALVE, 1.425 X 0.012 IN.
-
170603-339 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
183604-578 WASHER, TOP OUTWASHER, TOP OUT
-
190603-389 WASHER, BACKUPWASHER, BACKUP
-
200603-301 NUTNUT
-
212604-886 PISTON, FLOATINGPISTON, FLOATING
-
223604-579 BODY, SHOCKBODY, SHOCK
-
232604-889 DECAL, SHOCKDECAL, SHOCK
-
240703-341 VALVE, PRESSURE (INC. 25)VALVE, PRESSURE (INC. 25)
-
251604-318 ...O-RING...O-RING
-
260624-097 SCREW, VALVESCREW, VALVE
-
271604-664 BEARINGBEARING
-
283604-147 RING, RETAININGRING, RETAINING
-
295639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
