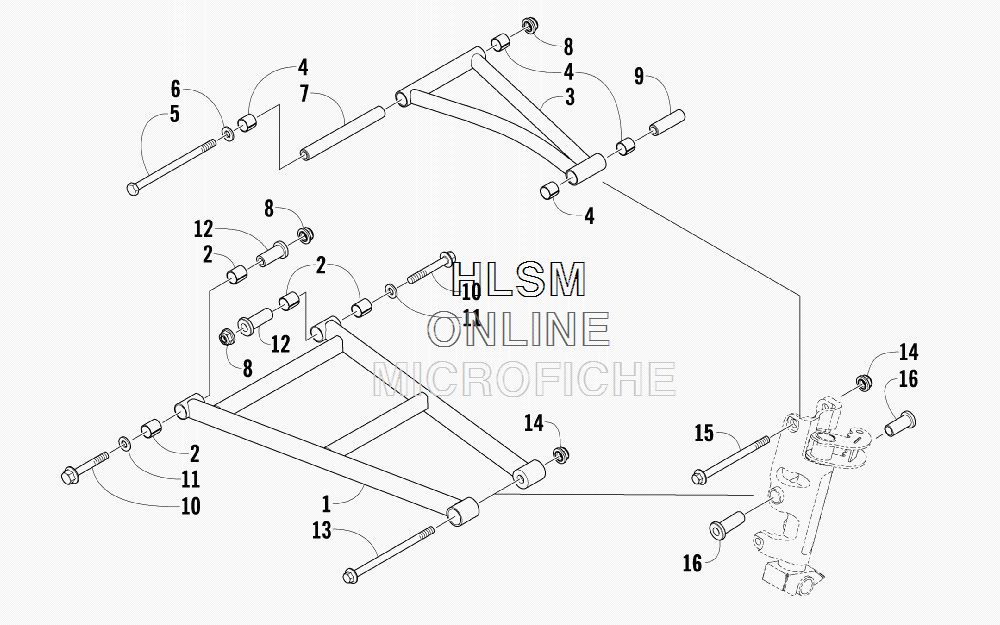

A-ARM ASSEMBLY для Arctic Cat M6 - 2010 года выпуска
-
№АртикулНазвание
-
11703-253 A-ARM, LOWER - PLATINUM (INC. 2)A-ARM, LOWER - PLATINUM (INC. 2)
-
21603-895 ...BEARING...BEARING
-
32703-119 A-ARM, UPPER - PLATINUM (INC. 4)A-ARM, UPPER - PLATINUM (INC. 4)
-
40603-083 ...BEARING...BEARING
-
50623-952 SCREW, CAPSCREW, CAP
-
60623-664 WASHERWASHER
-
72603-771 AXLE, INNER - UPPER ARMAXLE, INNER - UPPER ARM
-
88047-486 NUT, LOCKNUT, LOCK
-
92603-770 TUBE, AXLETUBE, AXLE
-
108020-230 SCREW, CAPSCREW, CAP
-
118050-282 WASHERWASHER
-
122603-820 AXLE, INNER - LOWER ARMAXLE, INNER - LOWER ARM
-
138026-236 SCREW, CAPSCREW, CAP
-
148047-490 NUT, LOCKNUT, LOCK
-
158026-232 SCREW, CAPSCREW, CAP
-
162603-772 AXLEAXLE
