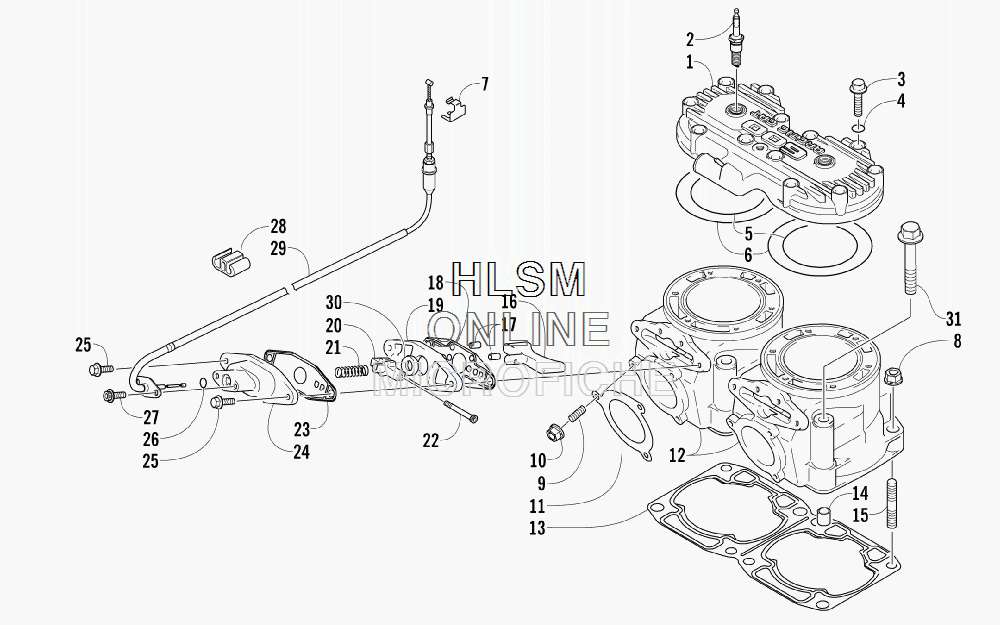

CYLINDER AND HEAD ASSEMBLY для Arctic Cat M6 - 2010 года выпуска
-
№АртикулНазвание
-
13006-642 HEAD, CYLINDERHEAD, CYLINDER
-
20217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
33006-538 SCREW, CAPSCREW, CAP
-
43003-227 O-RINGO-RING
-
53003-335 O-RINGO-RING
-
63006-490 O-RINGO-RING
-
73005-747 HOLDER, EXHAUST VALVE CABLEHOLDER, EXHAUST VALVE CABLE
-
83007-391 NUTNUT
-
93007-415 BOLT, STUDBOLT, STUD
-
103007-390 NUTNUT
-
113006-516 GASKET, EXHAUSTGASKET, EXHAUST
-
123006-643 CYLINDERCYLINDER
-
133006-493 GASKET, CYLINDERGASKET, CYLINDER
-
143004-975 PIN, DOWELPIN, DOWEL
-
153005-847 BOLT, STUDBOLT, STUD
-
163006-644 VALVE, EXHAUSTVALVE, EXHAUST
-
173006-321 PIN, EXHAUST VALVE DOWELPIN, EXHAUST VALVE DOWEL
-
183006-329 GASKET, EXHAUST VALVEGASKET, EXHAUST VALVE
-
193006-495 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
203005-860 STOPPER, EXHAUST VALVESTOPPER, EXHAUST VALVE
-
213006-484 SPRINGSPRING
-
223005-983 PIN, EXHAUST VALVE STOPPERPIN, EXHAUST VALVE STOPPER
-
233006-436 GASKET, EXHAUST VALVE COVERGASKET, EXHAUST VALVE COVER
-
243006-425 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
253007-434 SCREW, CAPSCREW, CAP
-
263005-226 O-RINGO-RING
-
273007-433 SCREW, CAPSCREW, CAP
-
283005-808 CLAMPCLAMP
-
293007-773 CABLE, EXHAUST VALVECABLE, EXHAUST VALVE
-
303006-322 SEAL, OILSEAL, OIL
-
313005-846 SCREW, CAPSCREW, CAP
