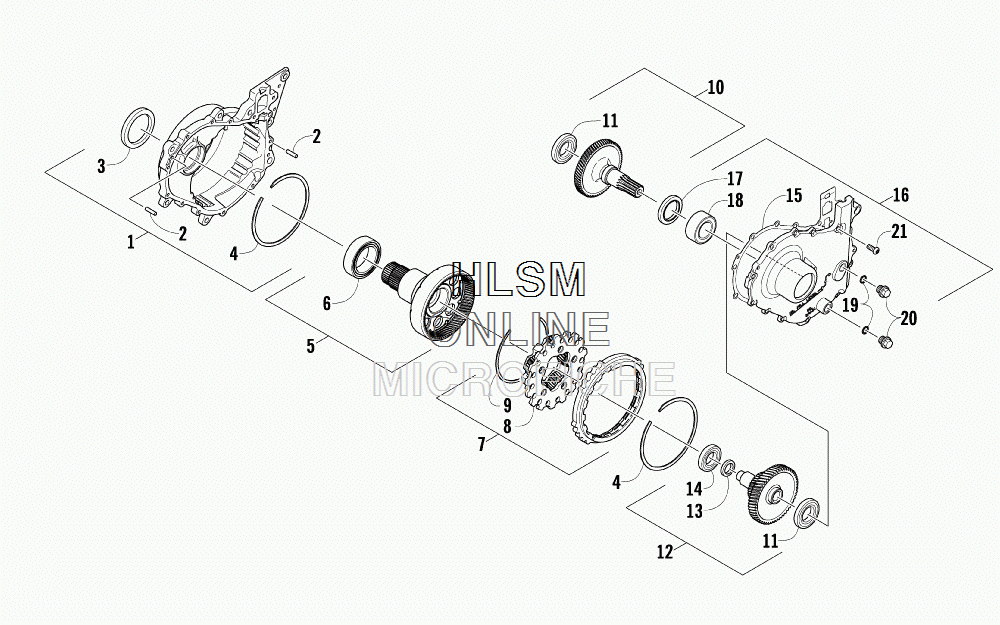

GEARCASE ASSEMBLY для Arctic Cat M8 SNO PRO LE 153 - BLACK [S2010M8HLEOSB] (INTERNATIONAL) - 2010 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/38687.png)
-
№АртикулНазвание
-
-1702-185 COMPLETE GEARCASE ASSEMBLYCOMPLETE GEARCASE ASSEMBLY
-
10702-998 HOUSING, GEARCASE (INC. 2-3 AND ONE NO. 4)HOUSING, GEARCASE (INC. 2-3 AND ONE NO. 4)
-
21602-915 ...PIN, DOWEL...PIN, DOWEL
-
32602-172 ...SEAL, OIL...SEAL, OIL
-
42602-151 ...RING, RETAINING...RING, RETAINING
-
51702-012 GEAR, RING (INC. 6)GEAR, RING (INC. 6)
-
61602-980 ...BEARING...BEARING
-
71702-013 GEAR, PLANETARY - ASSEMBLY (INC. 8-9)GEAR, PLANETARY - ASSEMBLY (INC. 8-9)
-
81602-349 ...GEAR, PLANETARY...GEAR, PLANETARY
-
92602-257 ...RING, RETAINING...RING, RETAINING
-
101702-182 SHAFT, INPUT - 55T (INC. ONE NO. 11)SHAFT, INPUT - 55T (INC. ONE NO. 11)
-
111602-981 ...BEARING...BEARING
-
121702-184 GEAR, TRANSFER - 65T/34T - ASSEMBLY (INC. ONE NO. 11 AND 13-14)GEAR, TRANSFER - 65T/34T - ASSEMBLY (INC. ONE NO. 11 AND 13-14)
-
132602-259 ...SPACER...SPACER
-
142602-108 ...BEARING...BEARING
-
152602-173 GASKET, GEARCASEGASKET, GEARCASE
-
160702-999 COVER, GEARCASE (INC. 17-20)COVER, GEARCASE (INC. 17-20)
-
172602-160 ...SEAL, OIL...SEAL, OIL
-
181602-982 ...BEARING...BEARING
-
191602-213 ...O-RING...O-RING
-
202602-099 ...PLUG, GEARCASE...PLUG, GEARCASE
-
211623-683 SCREW, MACHINESCREW, MACHINE
-
-5639-219 FLUID, GEARCASE - 15 OZ - NOT ILLUSTRATEDFLUID, GEARCASE - 15 OZ - NOT ILLUSTRATED
