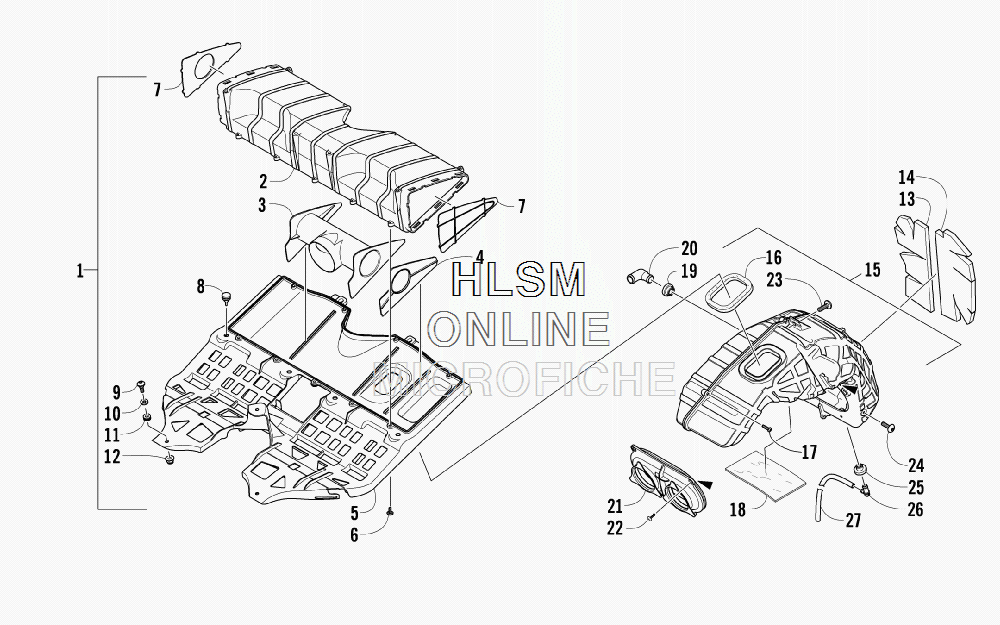

AIR SILENCER ASSEMBLY для Arctic Cat TZ1 LXR - 2010 года выпуска
-
№АртикулНазвание
-
10770-709 INTAKE, SUPPORT - ASSEMBLY (INC. 2-6)INTAKE, SUPPORT - ASSEMBLY (INC. 2-6)
-
21670-732 ...INTAKE, SUPPORT - TOP...INTAKE, SUPPORT - TOP
-
31670-828 ...RESONATOR, TOP - PLENUM...RESONATOR, TOP - PLENUM
-
41670-829 ...BAFFLE, TOP - PLENUM...BAFFLE, TOP - PLENUM
-
51670-733 ...INTAKE, SUPPORT - BOTTOM...INTAKE, SUPPORT - BOTTOM
-
60623-784 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
71670-830 COVER, TOP PLENUM - RIGHTCOVER, TOP PLENUM - RIGHT
-
71670-831 COVER, TOP PLENUM - LEFTCOVER, TOP PLENUM - LEFT
-
84606-276 GROMMETGROMMET
-
90423-356 SCREW, SHOULDERSCREW, SHOULDER
-
108050-212 WASHERWASHER
-
114606-275 GROMMETGROMMET
-
128427-602 NUT, LOCKNUT, LOCK
-
130617-542 FOAM, AIR SILENCER - RIGHTFOAM, AIR SILENCER - RIGHT
-
140617-543 FOAM, AIR SILENCER - LEFTFOAM, AIR SILENCER - LEFT
-
152670-023 SILENCER, AIR - ASSEMBLY (INC. 16-17)SILENCER, AIR - ASSEMBLY (INC. 16-17)
-
171623-711 ...SCREW, MACHINE...SCREW, MACHINE
-
180619-206 FOIL, PROTECTIVE - 6 IN.FOIL, PROTECTIVE - 6 IN.
-
191670-785 GROMMETGROMMET
-
201670-784 FITTING, ELBOWFITTING, ELBOW
-
212670-024 BOOT, DUAL INTAKEBOOT, DUAL INTAKE
-
220623-165 CLIP, RETAININGCLIP, RETAINING
-
231623-609 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
240423-029 SCREW, MACHINESCREW, MACHINE
-
251670-325 GROMMETGROMMET
-
261670-324 FITTING, ELBOWFITTING, ELBOW
-
270610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
270610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
