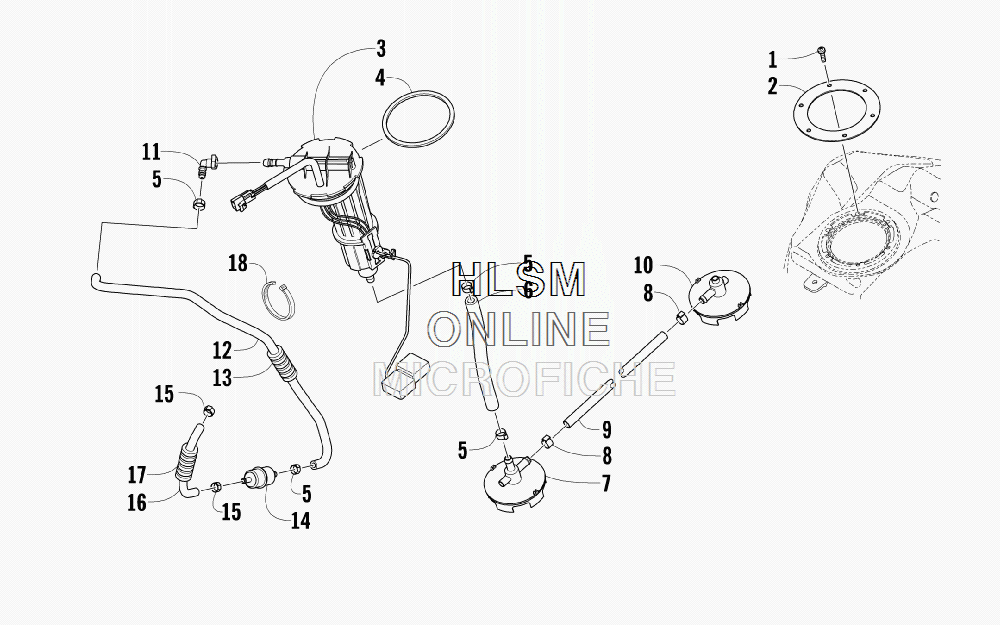

FUEL PUMP ASSEMBLY для Arctic Cat TZ1 LXR - 2010 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-042 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
32670-051 PUMP, FUEL - ASSEMBLYPUMP, FUEL - ASSEMBLY
-
40470-838 SEALSEAL
-
50610-563 CLAMP, HOSECLAMP, HOSE
-
60610-691 HOSE, GASLINE - 10 FTHOSE, GASLINE - 10 FT
-
71670-701 PICKUP, FUELPICKUP, FUEL
-
80610-704 CLAMP, HOSECLAMP, HOSE
-
92670-006 HOSEHOSE
-
101670-618 PICKUP, FUELPICKUP, FUEL
-
111670-878 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
120610-813 HOSE, GASLINEHOSE, GASLINE
-
131619-349 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
141670-825 FILTER, FUELFILTER, FUEL
-
150610-419 CLAMP, HOSECLAMP, HOSE
-
160610-706 HOSE, GASLINEHOSE, GASLINE
-
170619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
180123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
