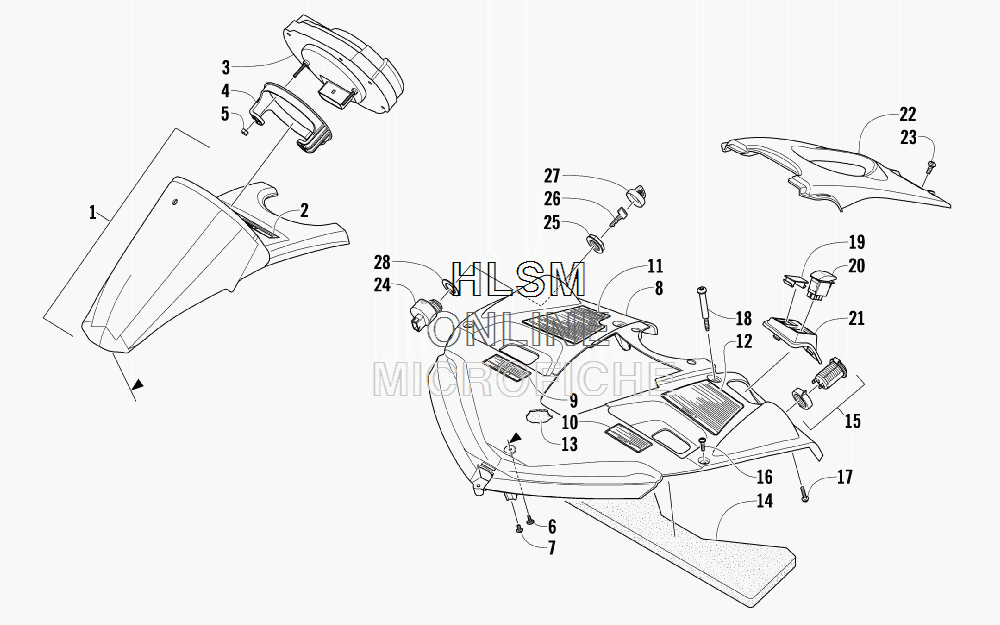

CONSOLE ASSEMBLY для Arctic Cat TZ1 TURBO LXR LE METALLIC CAT GREEN - 2010 года выпуска
-
№АртикулНазвание
-
12718-459 HOUSING, SPEEDOMETER/TACHOMETER (INC. 2)HOUSING, SPEEDOMETER/TACHOMETER (INC. 2)
-
27611-572 ...DECAL, WARNING - HANDLEBAR RISER...DECAL, WARNING - HANDLEBAR RISER
-
30620-362 SPEEDOMETER/TACHOMETERSPEEDOMETER/TACHOMETER
-
40620-322 BRACKET, RETAININGBRACKET, RETAINING
-
50423-493 NUT W/WASHERNUT W/WASHER
-
61623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
71623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
82718-816 CONSOLE - BLACK (INC. 9-12)CONSOLE - BLACK (INC. 9-12)
-
97611-574 ...DECAL, CAUTION - FRENCH...DECAL, CAUTION - FRENCH
-
107611-575 ...DECAL, CAUTION - ENGLISH...DECAL, CAUTION - ENGLISH
-
118611-848 ...DECAL, WARNING - TOURING - FRENCH...DECAL, WARNING - TOURING - FRENCH
-
128611-849 ...DECAL, WARNING - TOURING - ENGLISH...DECAL, WARNING - TOURING - ENGLISH
-
130617-558 FOAM, CONSOLE - FRONTFOAM, CONSOLE - FRONT
-
140617-559 FOAM, CONSOLE - REARFOAM, CONSOLE - REAR
-
150641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
161623-618 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
170623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
181623-669 SCREW, SHOULDERSCREW, SHOULDER
-
190409-070 PLUG, SWITCH-HOLEPLUG, SWITCH-HOLE
-
200609-836 SWITCH, SEAT HEATERSWITCH, SEAT HEATER
-
215606-236 HOUSING, SWITCH/CONSOLEHOUSING, SWITCH/CONSOLE
-
224706-639 CLOSE-OFF, HANDLEBARCLOSE-OFF, HANDLEBAR
-
230423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
240430-089 SWITCH, IGNITION (INC. 25-27)SWITCH, IGNITION (INC. 25-27)
-
250430-050 ...NUT, RETAINING...NUT, RETAINING
-
260430-042 ...KEY, IGNITION - Y SERIES - LEFT-SIDE CUT...KEY, IGNITION - Y SERIES - LEFT-SIDE CUT
-
260430-043 ...KEY, IGNITION - Z SERIES - RIGHT-SIDE CUT...KEY, IGNITION - Z SERIES - RIGHT-SIDE CUT
-
270430-054 ...COVER, KEY...COVER, KEY
-
280630-264 WASHERWASHER
