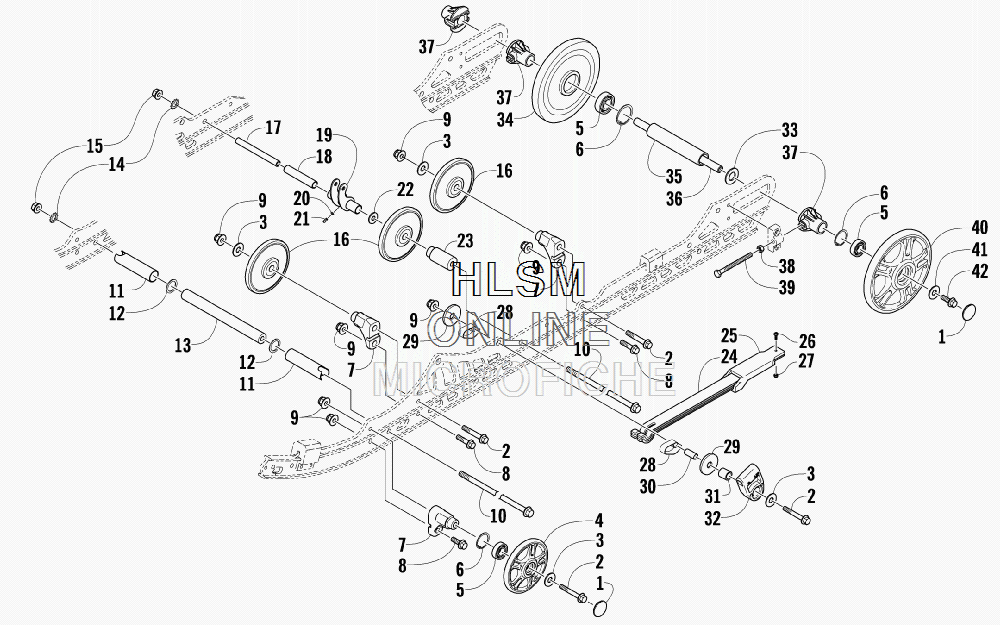

IDLER WHEEL ASSEMBLY для Arctic Cat TZ1 TURBO LXR LE METALLIC CAT GREEN - 2010 года выпуска
-
№АртикулНазвание
-
11604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
-
28408-880 SCREW, CAPSCREW, CAP
-
38450-133 WASHERWASHER
-
43604-494 WHEEL, IDLER - METALLIC CAT GREEN (INC. 5-6)WHEEL, IDLER - METALLIC CAT GREEN (INC. 5-6)
-
53604-033 ...BEARING...BEARING
-
60623-946 ...RING, RETAINING...RING, RETAINING
-
73604-004 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88408-835 SCREW, CAPSCREW, CAP
-
98427-802 NUT, LOCKNUT, LOCK
-
100423-537 SCREW, CAPSCREW, CAP
-
113604-083 SPACER, SHOCK - FRONT ARMSPACER, SHOCK - FRONT ARM
-
120623-912 WASHERWASHER
-
133604-269 AXLEAXLE
-
148053-272 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
158427-002 NUT, LOCKNUT, LOCK
-
163604-486 WHEEL, IDLERWHEEL, IDLER
-
173604-285 AXLEAXLE
-
183604-325 SPACERSPACER
-
191704-674 PIVOT, SHOCK (INC. 20-21)PIVOT, SHOCK (INC. 20-21)
-
201623-011 ...WASHER...WASHER
-
211623-010 ...FITTING, GREASE...FITTING, GREASE
-
221623-794 WASHERWASHER
-
233604-327 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
241704-279 SPRING, OVERLOAD - ASSEMBLY (INC. 25-28)SPRING, OVERLOAD - ASSEMBLY (INC. 25-28)
-
252604-788 ...BLOCK, WEAR...BLOCK, WEAR
-
260623-121 ...SCREW, MACHINE...SCREW, MACHINE
-
278041-276 ...NUT, LOCK...NUT, LOCK
-
281604-412 ...CLIP, RETAINING...CLIP, RETAINING
-
290623-746 WASHERWASHER
-
300604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
311604-430 SPACER, SPRING SLIDESPACER, SPRING SLIDE
-
322604-516 SLIDE, SPRINGSLIDE, SPRING
-
330623-921 WASHERWASHER
-
343604-060 WHEEL, IDLER (INC. 5-6)WHEEL, IDLER (INC. 5-6)
-
351604-940 SPACER, REAR WHEELSPACER, REAR WHEEL
-
363604-326 AXLE, REAR WHEELAXLE, REAR WHEEL
-
371704-680 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
388042-486 NUTNUT
-
390124-310 SCREW, CAPSCREW, CAP
-
403604-495 WHEEL, IDLER - METALLIC CAT GREEN (INC. 5-6)WHEEL, IDLER - METALLIC CAT GREEN (INC. 5-6)
-
410623-664 WASHERWASHER
-
428408-831 SCREW, CAPSCREW, CAP
