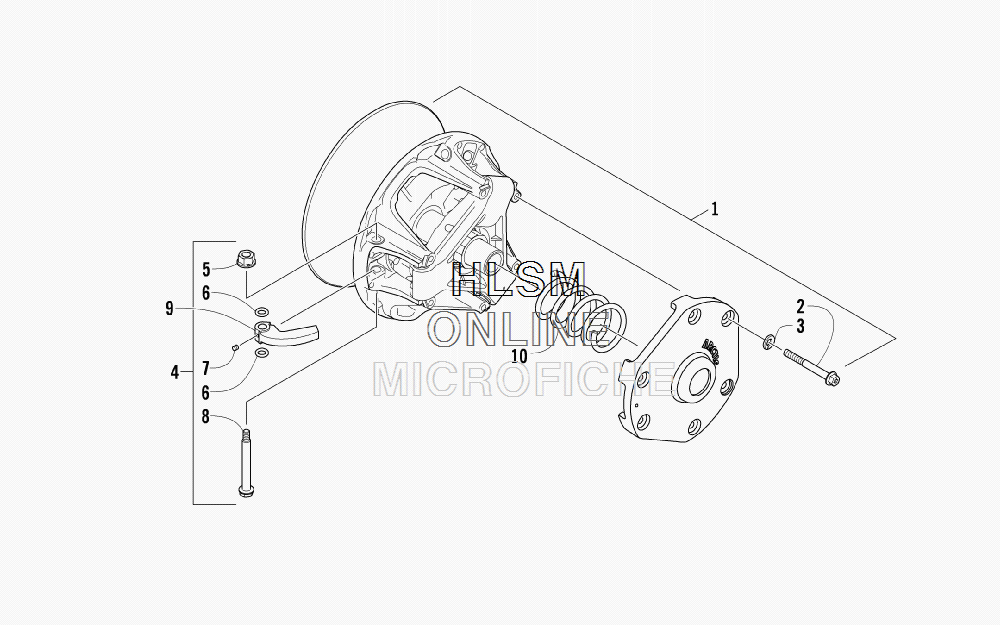

DRIVE CLUTCH для Arctic Cat Z1 TURBO LXR ORANGE - 2010 года выпуска
-
№АртикулНазвание
-
10746-213 CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)
-
21623-670 ...SCREW, SHOULDER...SCREW, SHOULDER
-
38051-242 ...WASHER, LOCK...WASHER, LOCK
-
44639-674 KIT, CAM ARM (INC. 5-8)KIT, CAM ARM (INC. 5-8)
-
58048-366 ...NUT, LOCK...NUT, LOCK
-
61602-692 ...O-RING...O-RING
-
71623-183 ...SCREW, SET...SCREW, SET
-
80646-747 ...PIN, CAM ARM...PIN, CAM ARM
-
90746-821 ARM, CAM (INC. 7)ARM, CAM (INC. 7)
-
100646-229 SPRING, DRIVE CLUTCH - YELLOW/WHITESPRING, DRIVE CLUTCH - YELLOW/WHITE
