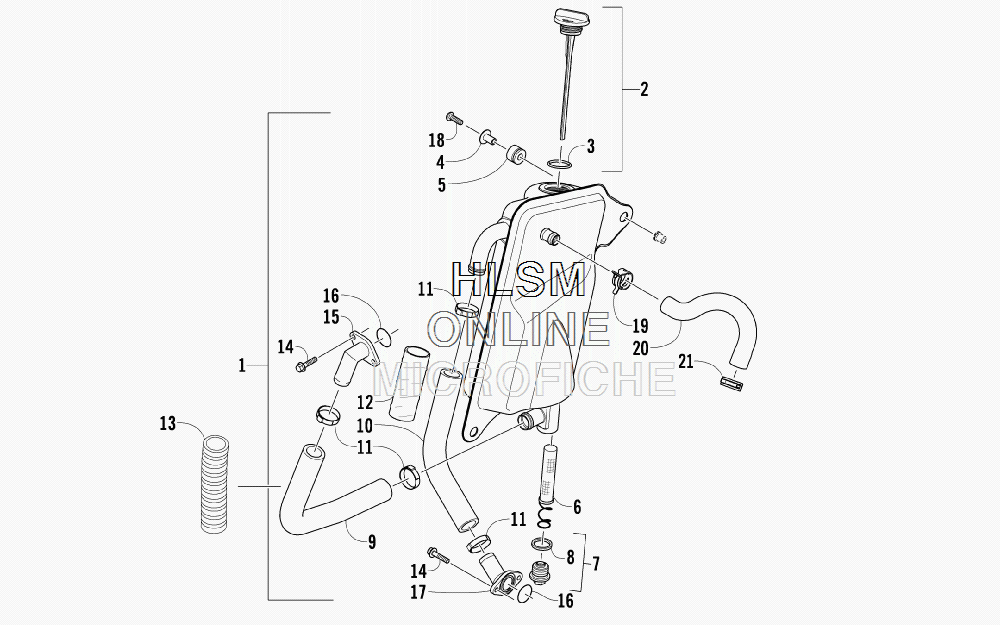

OIL TANK ASSEMBLY для Arctic Cat Z1 TURBO LXR ORANGE - 2010 года выпуска
-
№АртикулНазвание
-
10770-934 TANK, OIL - ASSEMBLY (INC. 2-10 AND TWO NO. 11)TANK, OIL - ASSEMBLY (INC. 2-10 AND TWO NO. 11)
-
22670-136 ...CAP, OIL TANK (INC. 3)...CAP, OIL TANK (INC. 3)
-
32670-135 ......SEAL......SEAL
-
41623-573 ...BUSHING, FLANGED...BUSHING, FLANGED
-
51670-729 ...GROMMET...GROMMET
-
61670-983 ...SCREEN, OIL TANK...SCREEN, OIL TANK
-
71670-914 ...PLUG, DRAIN (INC. 8)...PLUG, DRAIN (INC. 8)
-
81670-926 ......O-RING......O-RING
-
90610-641 ...HOSE, OIL - FEED...HOSE, OIL - FEED
-
100610-642 ...HOSE, OIL - RETURN...HOSE, OIL - RETURN
-
111623-515 ...CLAMP, HOSE...CLAMP, HOSE
-
120610-790 CONDUIT - 5 FTCONDUIT - 5 FT
-
131619-354 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
148408-616 SCREW, CAPSCREW, CAP
-
151670-727 FITTING, OIL SUPPLY - ENGINEFITTING, OIL SUPPLY - ENGINE
-
160648-441 O-RINGO-RING
-
171670-726 FITTING, OIL RETURN - ENGINEFITTING, OIL RETURN - ENGINE
-
188476-630 SCREW, MACHINESCREW, MACHINE
-
191623-288 CLAMP, HOSECLAMP, HOSE
-
200610-664 HOSE, BREATHER - OIL TANKHOSE, BREATHER - OIL TANK
-
211623-289 CLAMP, HOSECLAMP, HOSE
