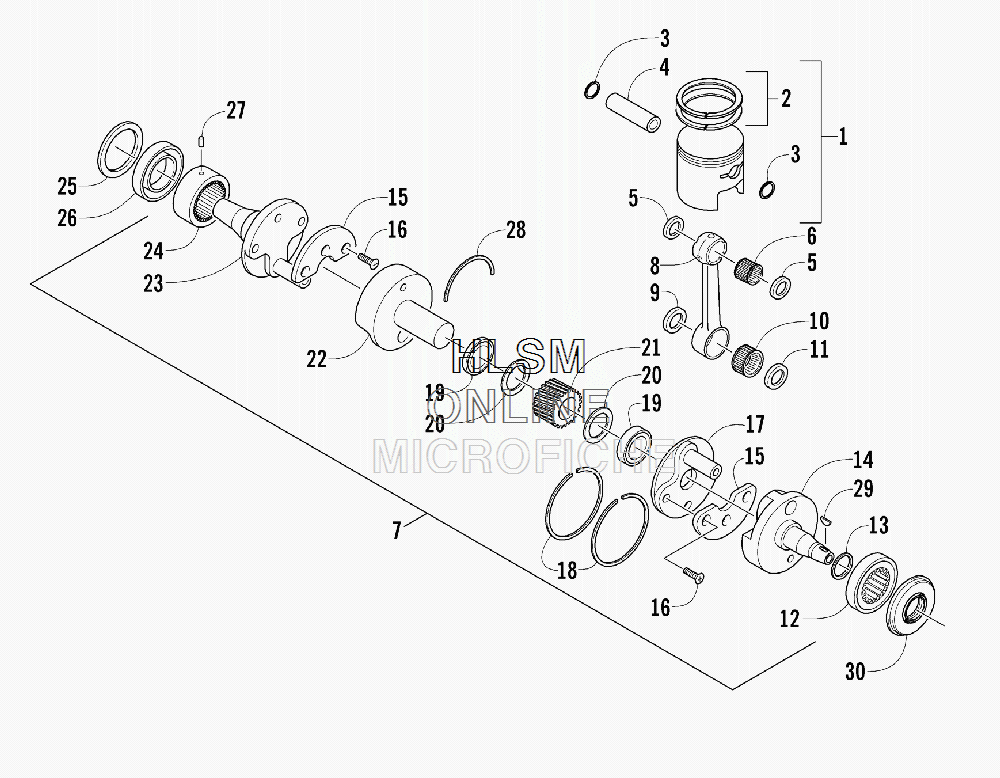

PISTON AND CRANKSHAFT для Arctic Cat CROSSFIRE 600 - 2011 года выпуска
-
№АртикулНазвание
-
13006-645 PISTON SET (INC. 2-3)PISTON SET (INC. 2-3)
-
23006-004 ...RING SET, PISTON...RING SET, PISTON
-
33005-304 ...CIRCLIP, PISTON...CIRCLIP, PISTON
-
43006-501 PIN, PISTONPIN, PISTON
-
53008-500 WASHERWASHER
-
63008-503 BEARINGBEARING
-
73007-869 CRANKSHAFT ASSEMBLY (INC. 8-24)CRANKSHAFT ASSEMBLY (INC. 8-24)
-
83007-530 ...CONNECTING ROD...CONNECTING ROD
-
93004-147 ...WASHER...WASHER
-
103007-532 ...BEARING...BEARING
-
113006-489 ...WASHER...WASHER
-
123006-551 ...BEARING...BEARING
-
133008-495 ...SHIM...SHIM
-
143006-503 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
153006-719 ...BALANCER, CRANKSHAFT...BALANCER, CRANKSHAFT
-
163007-440 ...SCREW, MACHINE...SCREW, MACHINE
-
173007-438 ...WHEEL, CRANKSHAFT...WHEEL, CRANKSHAFT
-
183005-508 ...RING, MIDDLE CRANK SEAL...RING, MIDDLE CRANK SEAL
-
193008-421 ...BEARING...BEARING
-
203006-508 ...RACE, MIDDLE CRANK SEAL...RACE, MIDDLE CRANK SEAL
-
213006-519 ...GEAR, OIL PUMP DRIVE...GEAR, OIL PUMP DRIVE
-
223007-437 ...CRANKSHAFT - MIDDLE...CRANKSHAFT - MIDDLE
-
233007-870 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
243007-439 ...BEARING-LH...BEARING-LH
-
253006-552 SPACERSPACER
-
263003-759 SEAL, OILSEAL, OIL
-
273003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
283003-359 C-RINGC-RING
-
293004-540 KEY, WOODRUFF,M4KEY, WOODRUFF,M4
-
303003-367 SEAL, OILSEAL, OIL
