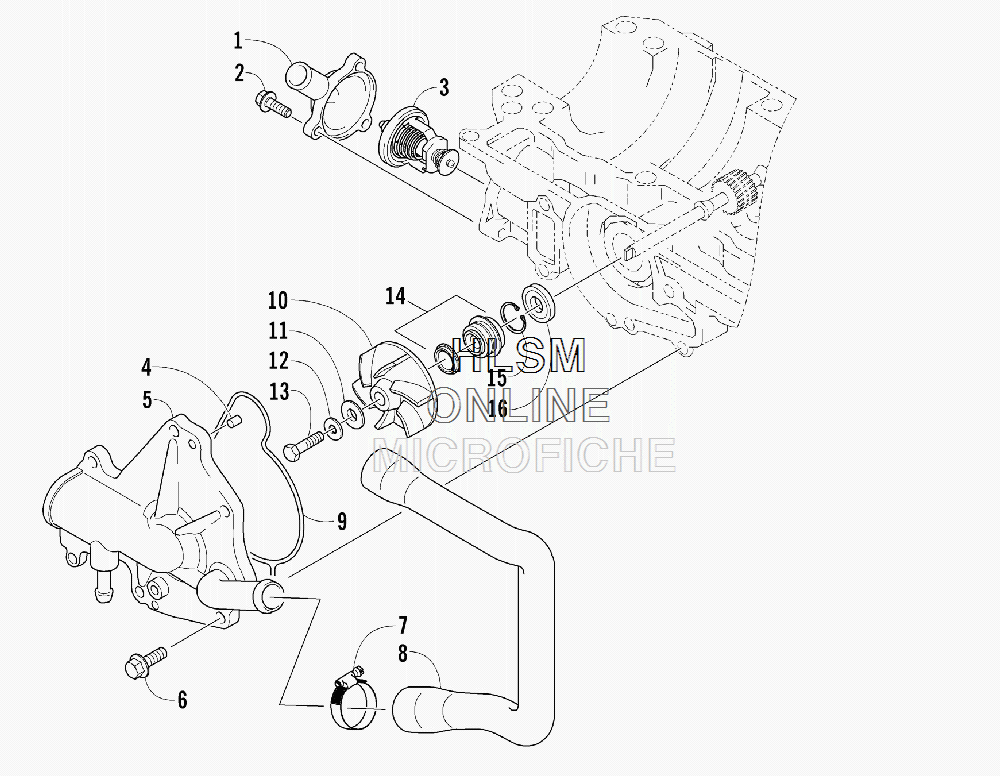

WATER PUMP AND THERMOSTAT для Arctic Cat CROSSFIRE 600 - 2011 года выпуска
-
№АртикулНазвание
-
13006-914 CAPCAP
-
23007-446 SCREW, CAPSCREW, CAP
-
33007-041 THERMOSTATTHERMOSTAT
-
43005-899 PIN, DOWELPIN, DOWEL
-
53006-942 COVER, WATER PUMPCOVER, WATER PUMP
-
63007-409 SCREW, CAPSCREW, CAP
-
73006-324 CLAMP, HOSECLAMP, HOSE
-
83006-521 HOSE, WATER INLETHOSE, WATER INLET
-
93006-356 O-RING, COVERO-RING, COVER
-
103005-697 IMPELLERIMPELLER
-
113003-432 GASKETGASKET
-
123003-431 WASHERWASHER
-
133003-426 BOLT, 6 X 13 YEL CHROM.BOLT, 6 X 13 YEL CHROM.
-
143007-180 SEAL, WATER PUMP - KITSEAL, WATER PUMP - KIT
-
153007-714 CIRCLIPCIRCLIP
-
163007-431 OIL SEAL-10X22X6OIL SEAL-10X22X6
