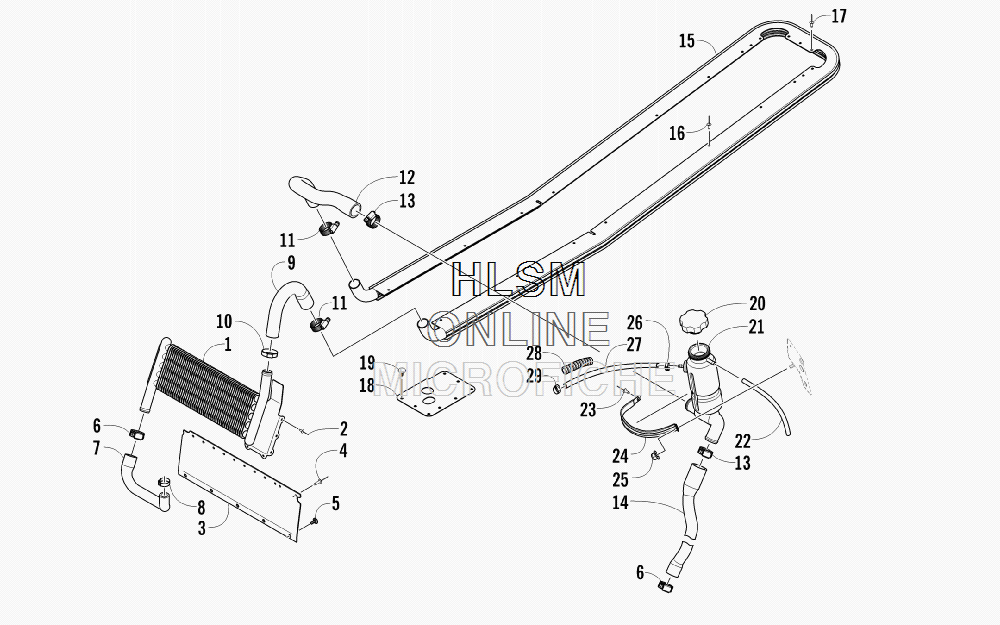

COOLING ASSEMBLY для Arctic Cat SNO PRO 500 (INTERNATIONAlL) - 2011 года выпуска
-
№АртикулНазвание
-
15606-857 EXCHANGER, HEAT - FRONTEXCHANGER, HEAT - FRONT
-
28060-686 RIVETRIVET
-
36606-287 PANEL, CLOSE-OUTPANEL, CLOSE-OUT
-
48061-706 RIVETRIVET
-
51623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61623-229 CLAMP, HOSECLAMP, HOSE
-
70610-782 HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER
-
81623-418 CLAMP, HOSECLAMP, HOSE
-
90610-781 HOSE, COOLANT - FRONT/REAR HEAT EXCHANGERHOSE, COOLANT - FRONT/REAR HEAT EXCHANGER
-
101623-349 CLAMP, HOSECLAMP, HOSE
-
111623-230 CLAMP, HOSECLAMP, HOSE
-
120610-780 HOSE, COOLANT - REAR HEAT EXCHANGER/COOLANT TANKHOSE, COOLANT - REAR HEAT EXCHANGER/COOLANT TANK
-
131623-093 CLAMP, HOSECLAMP, HOSE
-
140610-762 HOSE, COOLANT - COOLANT TANK/THERMOSTATHOSE, COOLANT - COOLANT TANK/THERMOSTAT
-
155606-858 EXCHANGER, HEAT - REAREXCHANGER, HEAT - REAR
-
161623-130 RIVETRIVET
-
171623-241 RIVETRIVET
-
185606-859 SEAL, COOLANT HOSESEAL, COOLANT HOSE
-
191623-907 CLIP, RETAININGCLIP, RETAINING
-
204606-209 CAP, COOLANT TANKCAP, COOLANT TANK
-
213706-684 TANK, COOLANTTANK, COOLANT
-
220610-016 HOSE, COOLANT - 25 FTHOSE, COOLANT - 25 FT
-
220610-015 HOSE, COOLANT - 100 FTHOSE, COOLANT - 100 FT
-
238061-682 RIVETRIVET
-
240623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
258427-502 NUT, LOCKNUT, LOCK
-
260124-045 CLAMP, HOSECLAMP, HOSE
-
270610-538 HOSE, COOLANT - 25 FTHOSE, COOLANT - 25 FT
-
282604-539 CONDUIT, FLEXIBLE - 10 FTCONDUIT, FLEXIBLE - 10 FT
-
291623-619 CLAMP, HOSECLAMP, HOSE
