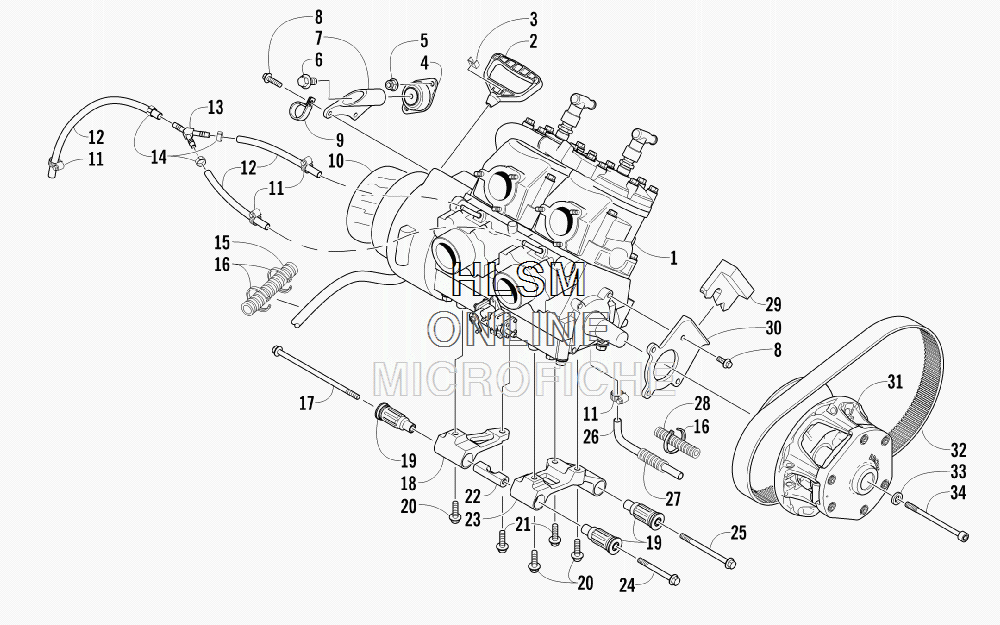

ENGINE AND RELATED PARTS для Arctic Cat SNO PRO 500 (INTERNATIONAlL) - 2011 года выпуска
-
№АртикулНазвание
-
10662-582 ENGINE, AX50L9 W/O EFI COMPONENTSENGINE, AX50L9 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40608-496 MOUNT, ENGINEMOUNT, ENGINE
-
58427-802 NUT, LOCKNUT, LOCK
-
68408-020 SCREW, CAPSCREW, CAP
-
70708-562 BRACKET, ENGINE MOUNTING - RIGHTBRACKET, ENGINE MOUNTING - RIGHT
-
88408-821 SCREW, CAPSCREW, CAP
-
90423-594 CLAMP, ROUTINGCLAMP, ROUTING
-
101670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120610-076 HOSE, COOLANT - 10 FTHOSE, COOLANT - 10 FT
-
131670-596 Y-FITTINGY-FITTING
-
140610-581 CLAMP, HOSECLAMP, HOSE
-
150619-994 CONDUIT, FLEXIBLE (3/4 IN. ID) - 6 IN.CONDUIT, FLEXIBLE (3/4 IN. ID) - 6 IN.
-
160123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
171623-730 SCREW, CAPSCREW, CAP
-
180708-570 BRACKET, ENGINE MOUNTING - RIGHT FRONTBRACKET, ENGINE MOUNTING - RIGHT FRONT
-
190801-091 MOUNT, RUBBER - ENGINEMOUNT, RUBBER - ENGINE
-
208408-090 SCREW, CAPSCREW, CAP
-
218409-031 SCREW, CAPSCREW, CAP
-
220608-592 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
230708-571 BRACKET, ENGINE MOUNTING - LEFT FRONT (INC. ONE NO. 19)BRACKET, ENGINE MOUNTING - LEFT FRONT (INC. ONE NO. 19)
-
248409-000 SCREW, CAPSCREW, CAP
-
251623-729 SCREW, CAPSCREW, CAP
-
260610-699 HOSE, COOLANTHOSE, COOLANT
-
270619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
280619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
290608-600 BUMPER, TORQUEBUMPER, TORQUE
-
300708-580 BRACKET, ENGINE MOUNTING - LEFTBRACKET, ENGINE MOUNTING - LEFT
-
310746-232 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
320627-047 BELT, DRIVEBELT, DRIVE
-
331623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
341623-792 BOLT, CLUTCHBOLT, CLUTCH
