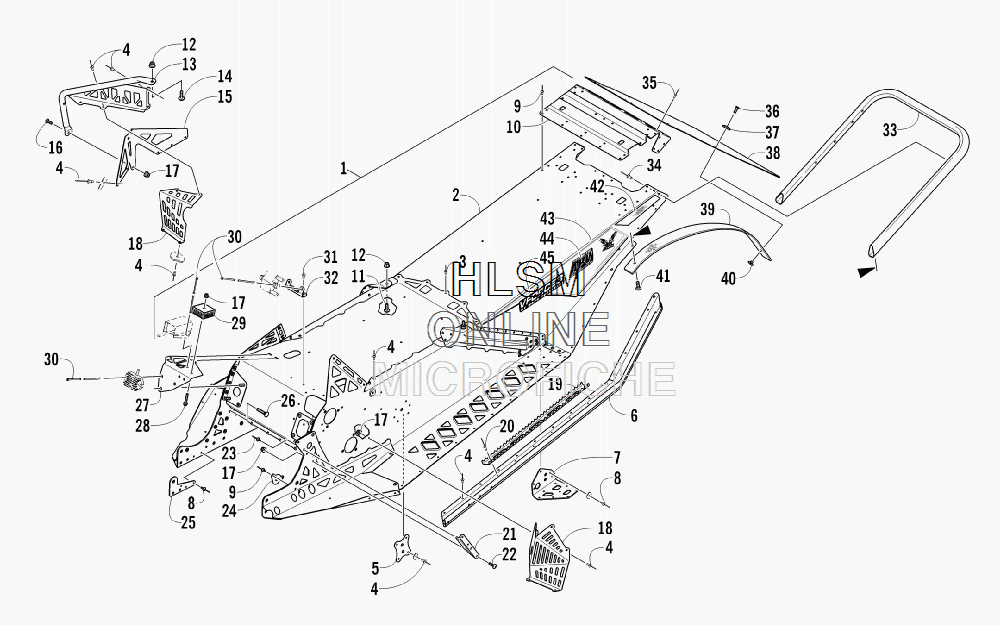

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat SNO PRO 600 SNO CROSS - 2011 года выпуска
-
№АртикулНазвание
-
11707-462 CHASSIS ASSEMBLY - BLACK (INC. 2-11 AND TWO NO. 12)CHASSIS ASSEMBLY - BLACK (INC. 2-11 AND TWO NO. 12)
-
21707-440 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
38061-682 ...RIVET...RIVET
-
41623-130 ...RIVET...RIVET
-
51607-090 ...PLATE, BACKING...PLATE, BACKING
-
64706-750 ...ROLL, TUNNEL - RIGHT - BLACK...ROLL, TUNNEL - RIGHT - BLACK
-
64706-751 ...ROLL, TUNNEL - LEFT - BLACK...ROLL, TUNNEL - LEFT - BLACK
-
74706-834 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK
-
74706-835 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK
-
81623-241 ...RIVET...RIVET
-
98060-706 ...RIVET...RIVET
-
101707-441 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
118476-835 ...SCREW, MACHINE...SCREW, MACHINE
-
128427-802 ...NUT, LOCK...NUT, LOCK
-
134706-514 HOOK, TOE - RIGHT - BLACKHOOK, TOE - RIGHT - BLACK
-
134706-515 HOOK, TOE - LEFT - BLACKHOOK, TOE - LEFT - BLACK
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
154706-510 GUSSET, TOE STOP - RIGHT - BLACKGUSSET, TOE STOP - RIGHT - BLACK
-
154706-511 GUSSET, TOE STOP - LEFT - BLACKGUSSET, TOE STOP - LEFT - BLACK
-
168476-630 SCREW, MACHINESCREW, MACHINE
-
178427-602 NUT, LOCKNUT, LOCK
-
184706-516 SHIELD, TOE - RIGHT - BLACKSHIELD, TOE - RIGHT - BLACK
-
184706-517 SHIELD, TOE - LEFT - BLACKSHIELD, TOE - LEFT - BLACK
-
194706-307 PLATE, GRIP - GREENPLATE, GRIP - GREEN
-
208060-506 RIVETRIVET
-
210608-585 BRACKET, ENGINE/CHASSIS MOUNTING - LEFTBRACKET, ENGINE/CHASSIS MOUNTING - LEFT
-
228476-620 SCREW, MACHINESCREW, MACHINE
-
231623-206 RIVETRIVET
-
245606-672 PLATE, BACKING - PTO MOUNTINGPLATE, BACKING - PTO MOUNTING
-
255606-628 BRACE, SUPPORT - INNERBRACE, SUPPORT - INNER
-
261623-020 BOLT, CARRIAGEBOLT, CARRIAGE
-
275606-966 PANEL, ELECTRICALPANEL, ELECTRICAL
-
288408-635 SCREW, CAPSCREW, CAP
-
290630-181 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
300123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
300123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
318060-682 RIVETRIVET
-
325606-536 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
334706-882 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
348060-686 RIVETRIVET
-
358061-708 RIVETRIVET
-
368017-607 SCREW, MACHINESCREW, MACHINE
-
371623-242 WASHERWASHER
-
386606-240 SNOWFLAPSNOWFLAP
-
393604-157 STRAP, SNOWFLAP RESTRAINTSTRAP, SNOWFLAP RESTRAINT
-
401623-608 NUTNUT
-
411623-463 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
428611-676 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
428611-677 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
439611-292 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
439611-293 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
447611-150 DECAL, "APV"DECAL, "APV"
-
458611-994 DECAL, "V-FORCE"DECAL, "V-FORCE"
