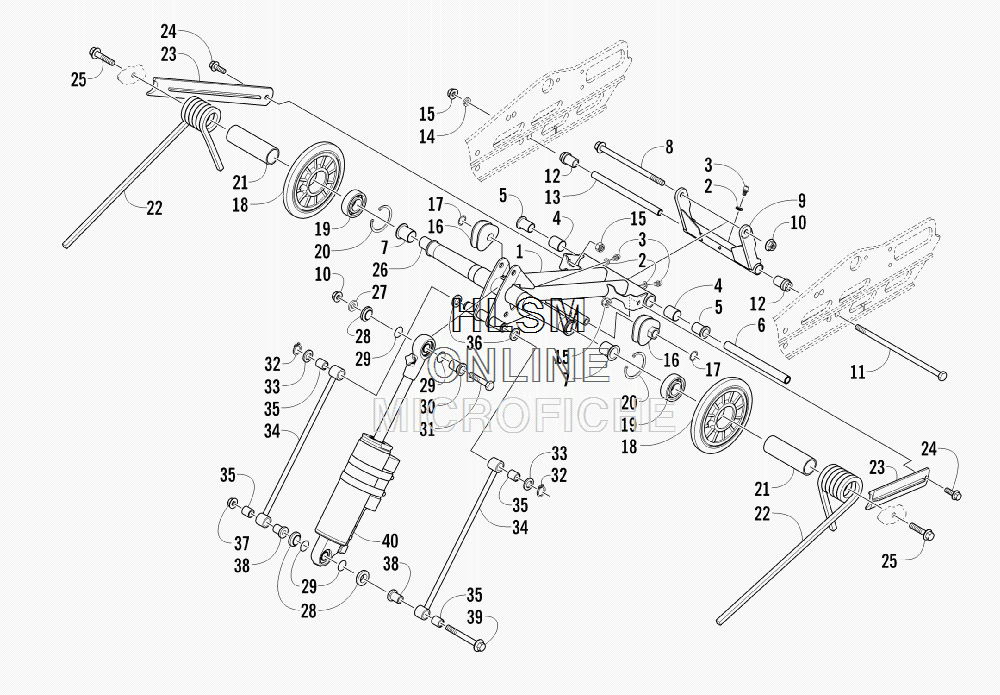

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat SNO PRO 600 SNO CROSS - 2011 года выпуска
-
№АртикулНазвание
-
11704-918 ARM, IDLER - BLACK (INC. TWO NO. 2-3 AND 4-7)ARM, IDLER - BLACK (INC. TWO NO. 2-3 AND 4-7)
-
21623-011 ...WASHER...WASHER
-
31623-010 ...FITTING, GREASE...FITTING, GREASE
-
42603-481 ...BEARING...BEARING
-
53604-222 ...BUSHING, FLARED...BUSHING, FLARED
-
63604-226 ...AXLE...AXLE
-
73604-223 ...BEARING...BEARING
-
81623-674 SCREW, CAPSCREW, CAP
-
91704-368 ARM, REAR - BLACK (INC. ONE NO. 2-3)ARM, REAR - BLACK (INC. ONE NO. 2-3)
-
108047-486 NUT, LOCKNUT, LOCK
-
111623-037 SCREW, CAPSCREW, CAP
-
121604-307 AXLE, SERRATEDAXLE, SERRATED
-
132604-665 TUBE, AXLETUBE, AXLE
-
148051-277 WASHER, LOCKWASHER, LOCK
-
158040-486 NUT, LOCKNUT, LOCK
-
161604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
161604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
170623-138 RING, RETAININGRING, RETAINING
-
183604-616 WHEEL, IDLER (INC. 19-20)WHEEL, IDLER (INC. 19-20)
-
193604-257 ...BEARING...BEARING
-
203604-256 ...RING, RETAINING...RING, RETAINING
-
213604-414 SLEEVE, SPRINGSLEEVE, SPRING
-
221704-916 SPRING, SUSPENSION - RIGHT - LIGHTSPRING, SUSPENSION - RIGHT - LIGHT
-
221704-917 SPRING, SUSPENSION - LEFT - LIGHTSPRING, SUSPENSION - LEFT - LIGHT
-
221704-382 SPRING, SUSPENSION - RIGHT - LIGHT - OPTIONALSPRING, SUSPENSION - RIGHT - LIGHT - OPTIONAL
-
221704-383 SPRING, SUSPENSION - LEFT - LIGHT - OPTIONALSPRING, SUSPENSION - LEFT - LIGHT - OPTIONAL
-
221704-384 SPRING, SUSPENSION - RIGHT - HEAVY - OPTIONALSPRING, SUSPENSION - RIGHT - HEAVY - OPTIONAL
-
221704-385 SPRING, SUSPENSION - LEFT - HEAVY - OPTIONALSPRING, SUSPENSION - LEFT - HEAVY - OPTIONAL
-
233604-408 BRACE, SUPPORTBRACE, SUPPORT
-
248020-222 SCREW, CAPSCREW, CAP
-
251623-903 SCREW, CAPSCREW, CAP
-
263604-388 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
270623-664 WASHERWASHER
-
283604-210 SPACERSPACER
-
292604-698 O-RINGO-RING
-
303604-127 SPACERSPACER
-
311623-120 SCREW, CAPSCREW, CAP
-
320623-237 SNAP RINGSNAP RING
-
331623-389 WASHERWASHER
-
341704-377 LINK, REAR SHOCK (INC. 35)LINK, REAR SHOCK (INC. 35)
-
350603-083 ...BEARING...BEARING
-
361623-384 WASHER, URETHANEWASHER, URETHANE
-
378047-610 NUT, LOCKNUT, LOCK
-
383604-209 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
398026-414 SCREW, CAPSCREW, CAP
-
402704-046 SHOCK ABSORBERSHOCK ABSORBER
