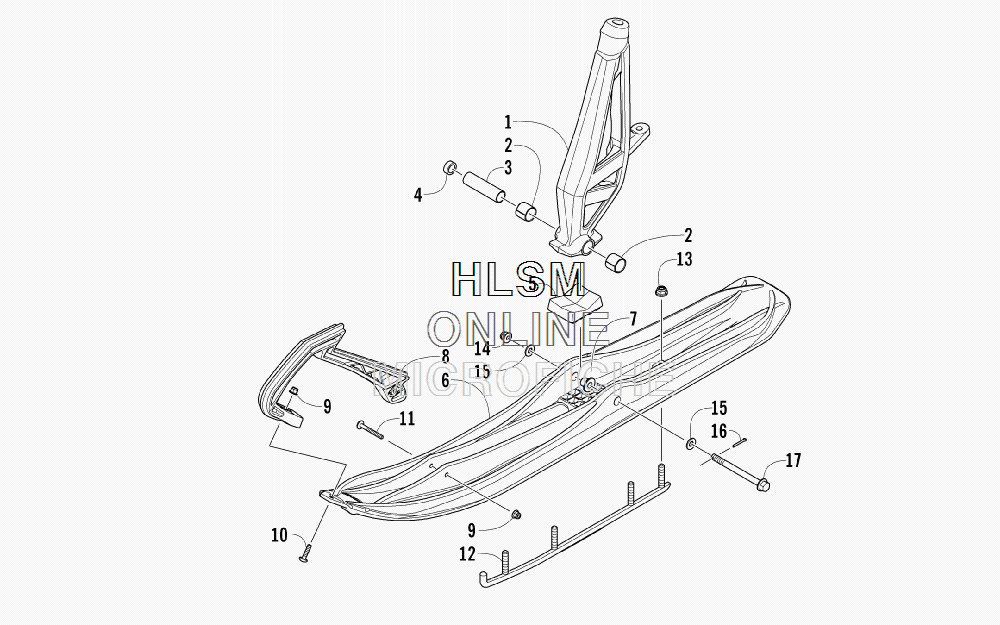

SKI AND SPINDLE ASSEMBLY для Arctic Cat SNO PRO 600 CROSS COUNTRY (INTERNATONAL) - 2012 года выпуска
-
№АртикулНазвание
-
12703-910 SPINDLE, STEERING - RIGHT - GREEN (INC. 2)SPINDLE, STEERING - RIGHT - GREEN (INC. 2)
-
12703-911 SPINDLE, STEERING - LEFT - GREEN (INC. 2)SPINDLE, STEERING - LEFT - GREEN (INC. 2)
-
22603-481 ...BEARING...BEARING
-
32603-813 AXLE, SPINDLEAXLE, SPINDLE
-
42603-208 SPACERSPACER
-
52603-871 DAMPER, SKIDAMPER, SKI
-
62603-833 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
72603-746 INSERTINSERT
-
82603-950 HANDLE, PLASTIC - BLACKHANDLE, PLASTIC - BLACK
-
98427-602 NUT, LOCKNUT, LOCK
-
108476-625 SCREW, MACHINESCREW, MACHINE
-
118476-650 SCREW, MACHINESCREW, MACHINE
-
120703-871 WEARBARWEARBAR
-
138047-486 NUT, LOCKNUT, LOCK
-
140423-744 NUT, LOCKNUT, LOCK
-
151623-801 WASHERWASHER
-
160123-458 PIN, COTTERPIN, COTTER
-
171623-781 SCREW, CAPSCREW, CAP
