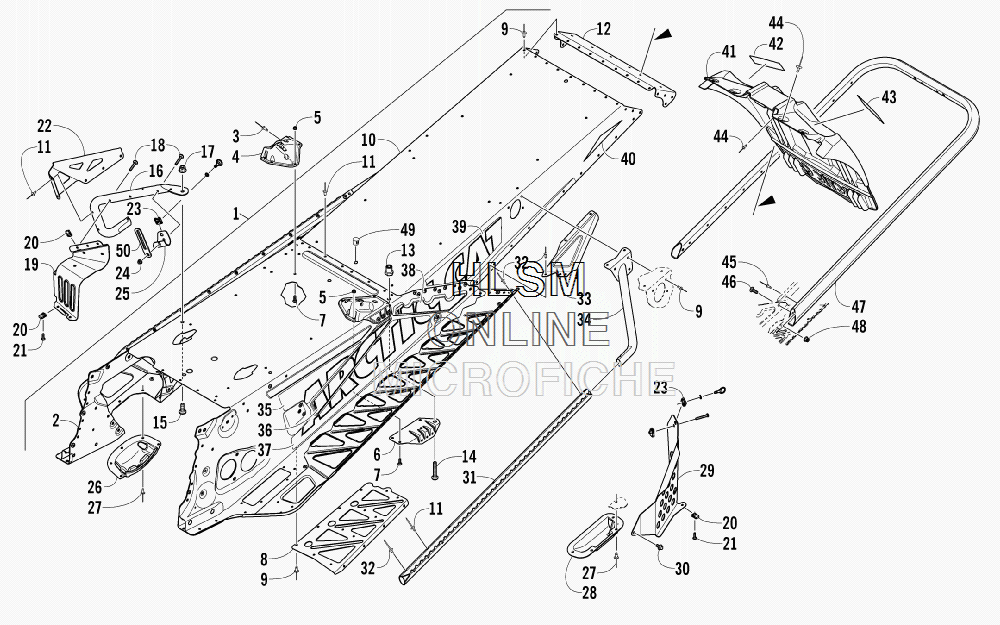

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat SNO PRO 600 CROSS COUNTRY (INTERNATONAL) - 2012 года выпуска
-
№АртикулНазвание
-
-1707-677 COMPLETE CHASSIS ASSEMBLY - GREENCOMPLETE CHASSIS ASSEMBLY - GREEN
-
11707-768 TUNNEL ASSEMBLY - GREEN (INC. 2-12)TUNNEL ASSEMBLY - GREEN (INC. 2-12)
-
21707-766 ...TUNNEL, FRONT - ASSEMBLY - GREEN...TUNNEL, FRONT - ASSEMBLY - GREEN
-
31623-206 ...RIVET...RIVET
-
41707-736 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
-
41707-737 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
-
58422-502 ...NUT, LOCK...NUT, LOCK
-
61707-760 ...PLATE, BACKING - RIGHT - GREEN...PLATE, BACKING - RIGHT - GREEN
-
61707-761 ...PLATE, BACKING - LEFT - GREEN...PLATE, BACKING - LEFT - GREEN
-
78476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
81707-732 ...SUPPORT, RUNNING BOARD - RIGHT - GREEN...SUPPORT, RUNNING BOARD - RIGHT - GREEN
-
81707-733 ...SUPPORT, RUNNING BOARD - LEFT - GREEN...SUPPORT, RUNNING BOARD - LEFT - GREEN
-
98060-682 ...RIVET...RIVET
-
101707-729 ...TUNNEL, REAR - GREEN...TUNNEL, REAR - GREEN
-
111623-130 ...RIVET...RIVET
-
121707-405 ...END CAP, TUNNEL - GREEN...END CAP, TUNNEL - GREEN
-
132704-301 STAND-OFF, GAS TANK - GREENSTAND-OFF, GAS TANK - GREEN
-
148468-850 SCREW, MACHINESCREW, MACHINE
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-636 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
161707-637 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
178427-802 NUT, LOCKNUT, LOCK
-
188468-536 SCREW, MACHINESCREW, MACHINE
-
191707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
191707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
218470-516 SCREW, MACHINESCREW, MACHINE
-
221707-634 GUSSET, FOOTREST - RIGHT - BLACKGUSSET, FOOTREST - RIGHT - BLACK
-
221707-635 GUSSET, FOOTREST - LEFT - BLACKGUSSET, FOOTREST - LEFT - BLACK
-
231623-748 CLIP, RETAININGCLIP, RETAINING
-
248427-502 NUT, LOCKNUT, LOCK
-
256606-350 BRACKET, MOUNTING - SIDE PANELBRACKET, MOUNTING - SIDE PANEL
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
291707-778 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
308408-613 SCREW, CAPSCREW, CAP
-
311707-730 ROLL, TUNNEL - RIGHT - GREENROLL, TUNNEL - RIGHT - GREEN
-
311707-731 ROLL, TUNNEL - LEFT - GREENROLL, TUNNEL - LEFT - GREEN
-
321623-241 RIVETRIVET
-
331707-734 GUSSET, RUNNING BOARD - RIGHT - GREENGUSSET, RUNNING BOARD - RIGHT - GREEN
-
331707-735 GUSSET, RUNNING BOARD - LEFT - GREENGUSSET, RUNNING BOARD - LEFT - GREEN
-
341707-774 GUSSET, TUNNEL ROLL - RIGHT - GREENGUSSET, TUNNEL ROLL - RIGHT - GREEN
-
341707-775 GUSSET, TUNNEL ROLL - LEFT - GREENGUSSET, TUNNEL ROLL - LEFT - GREEN
-
350621-194 DECAL, TUNNEL - UPPER FRONT - RIGHT - WHITEDECAL, TUNNEL - UPPER FRONT - RIGHT - WHITE
-
350621-121 DECAL, TUNNEL - UPPER FRONT - LEFT - GREENDECAL, TUNNEL - UPPER FRONT - LEFT - GREEN
-
360621-192 DECAL, TUNNEL - CENTER FRONT - RIGHT - WHITEDECAL, TUNNEL - CENTER FRONT - RIGHT - WHITE
-
360621-119 DECAL, TUNNEL - CENTER FRONT - LEFT - GREENDECAL, TUNNEL - CENTER FRONT - LEFT - GREEN
-
370621-190 DECAL, TUNNEL - LOWER FRONT - RIGHT - WHITEDECAL, TUNNEL - LOWER FRONT - RIGHT - WHITE
-
370621-117 DECAL, TUNNEL - LOWER FRONT - LEFT - GREENDECAL, TUNNEL - LOWER FRONT - LEFT - GREEN
-
380621-188 DECAL, TUNNEL - CENTER - RIGHT - WHITEDECAL, TUNNEL - CENTER - RIGHT - WHITE
-
380621-115 DECAL, TUNNEL - CENTER - LEFT - GREENDECAL, TUNNEL - CENTER - LEFT - GREEN
-
390621-186 DECAL, TUNNEL - REAR - RIGHT - WHITEDECAL, TUNNEL - REAR - RIGHT - WHITE
-
390621-113 DECAL, TUNNEL - REAR - LEFT - GREENDECAL, TUNNEL - REAR - LEFT - GREEN
-
409611-512 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
416606-394 SNOWFLAPSNOWFLAP
-
425611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
448061-706 RIVETRIVET
-
458060-686 RIVETRIVET
-
468476-616 SCREW, MACHINESCREW, MACHINE
-
471707-678 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
488427-602 NUT, LOCKNUT, LOCK
-
490623-562 PLUG, HOLEPLUG, HOLE
-
503002-964 CLAMP, WIRECLAMP, WIRE
