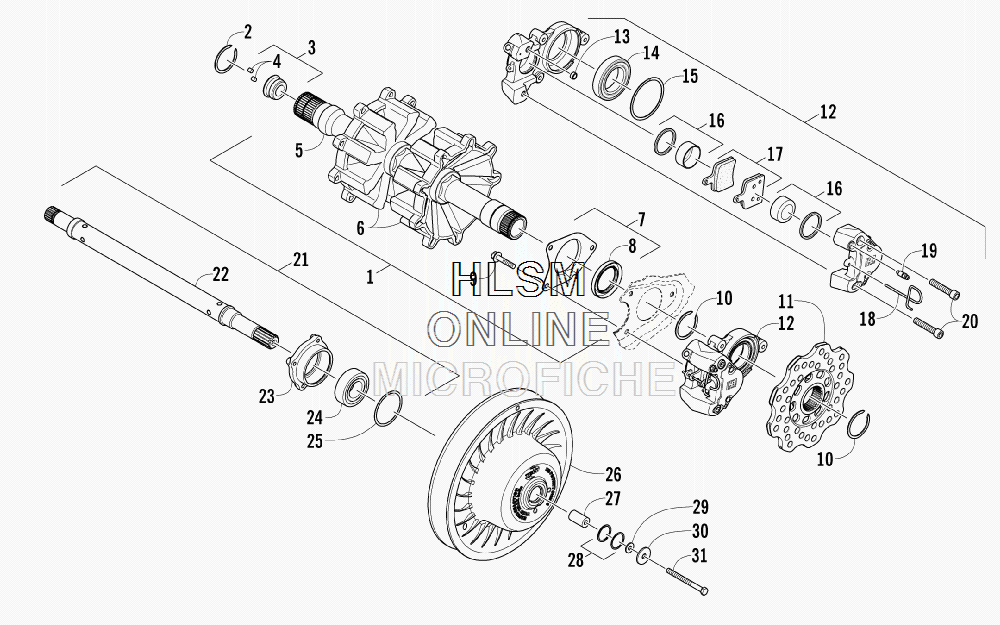

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat SNO PRO 600 (INTERNATONAL) - 2012 года выпуска
-
№АртикулНазвание
-
10728-202 TRACK, DRIVE - ASSEMBLY (INC. 2-8)TRACK, DRIVE - ASSEMBLY (INC. 2-8)
-
22602-233 ...RING, RETAINING...RING, RETAINING
-
31702-243 ...PLUG, MAGNETIC - ASSEMBLY (INC. 4)...PLUG, MAGNETIC - ASSEMBLY (INC. 4)
-
42602-211 ......MAGNET......MAGNET
-
52602-442 ...DRIVESHAFT...DRIVESHAFT
-
62602-472 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
71702-206 ...PLATE, RETAINING - SEAL (INC. 8)...PLATE, RETAINING - SEAL (INC. 8)
-
81602-344 ......SEAL......SEAL
-
98408-826 SCREW, CAPSCREW, CAP
-
102602-473 RING, RETAININGRING, RETAINING
-
112602-516 DISC, BRAKEDISC, BRAKE
-
122602-486 CALIPER, BRAKE - ASSEMBLY (INC. 13-20)CALIPER, BRAKE - ASSEMBLY (INC. 13-20)
-
132602-411 ...SEAL...SEAL
-
142602-198 ...BEARING...BEARING
-
152602-280 ...RING, RETAINING...RING, RETAINING
-
162602-410 ...PISTON SET...PISTON SET
-
171702-245 ...PAD, BRAKE - SET (INC. 18)...PAD, BRAKE - SET (INC. 18)
-
182602-409 ......PIN, RETAINING......PIN, RETAINING
-
192602-408 ...FITTING, BLEED...FITTING, BLEED
-
202602-412 ...SCREW, CAP...SCREW, CAP
-
211702-218 SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)
-
232602-422 ...HUB, BEARING...HUB, BEARING
-
242602-247 ...BEARING...BEARING
-
252602-236 ...RING, RETAINING...RING, RETAINING
-
260726-329 CLUTCH, DRIVEN - ASSEMBLY 44/32CLUTCH, DRIVEN - ASSEMBLY 44/32
-
270648-819 SHAFT, STUBSHAFT, STUB
-
280623-118 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
280623-119 WASHER, SHIM (.075 IN.)WASHER, SHIM (.075 IN.)
-
290123-053 WASHERWASHER
-
300123-019 WASHERWASHER
-
318408-880 SCREW, CAPSCREW, CAP
