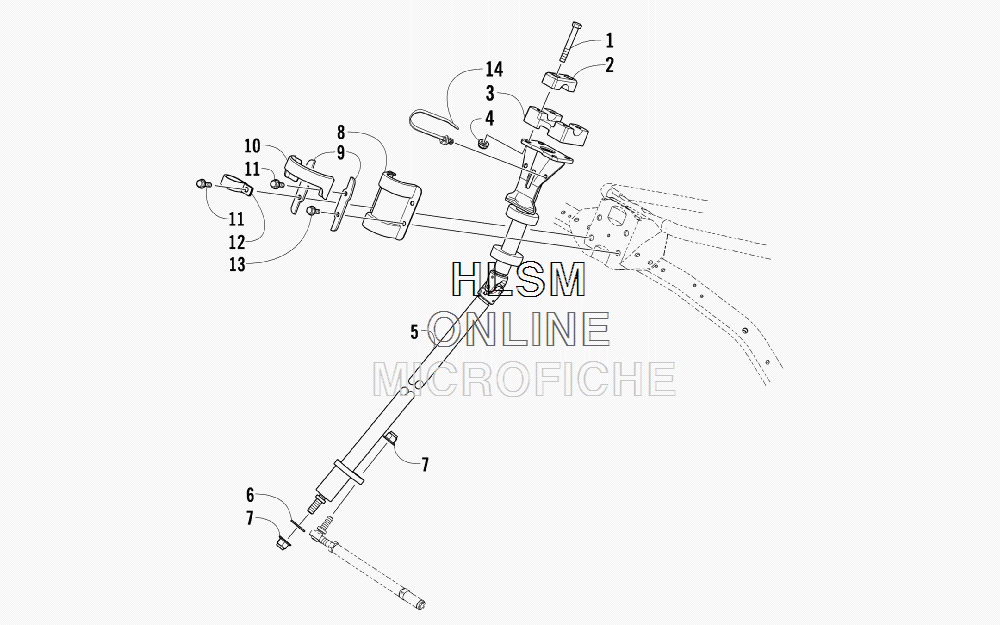

STEERING POST ASSEMBLY для Arctic Cat TZ1 - 2012 года выпуска
-
№АртикулНазвание
-
18002-138 SCREW,CAP-HH 5/16-18 X2.25 G5 Z & YSCREW,CAP-HH 5/16-18 X2.25 G5 Z & Y
-
20605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
30605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
48047-426 NUT, LOCKNUT, LOCK
-
51705-353 POST, STEERINGPOST, STEERING
-
68050-282 WASHERWASHER
-
78427-002 NUT, LOCKNUT, LOCK
-
81705-087 BRACKET, BEARINGBRACKET, BEARING
-
91705-201 PLATE, BEARING BRACKETPLATE, BEARING BRACKET
-
100605-993 BRACKET, WIRE PROTECTORBRACKET, WIRE PROTECTOR
-
118408-621 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353
-
123008-040 CLAMP, THROTTLE CABLECLAMP, THROTTLE CABLE
-
138408-617 SCREW,CAP-HFH M6X1.0X16 CL8.8 Z & Y W/2353SCREW,CAP-HFH M6X1.0X16 CL8.8 Z & Y W/2353
-
140623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
