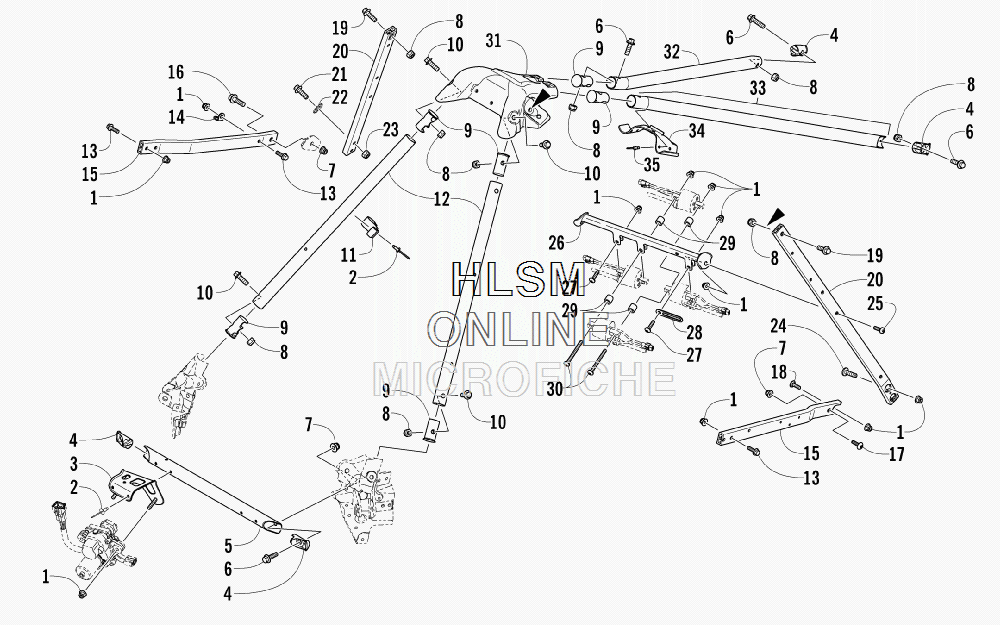

STEERING SUPPORT ASSEMBLY для Arctic Cat XF 800 SNO PRO - ANNIVERSARY EDITION - 2012 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
28060-686 RIVETRIVET
-
34706-845 BRACKET, MOUNTING - SERVOMOTORBRACKET, MOUNTING - SERVOMOTOR
-
41607-002 INSERTINSERT
-
51707-582 SUPPORT, SHOCK MOUNT BRACKETSUPPORT, SHOCK MOUNT BRACKET
-
68408-830 SCREW, CAPSCREW, CAP
-
78427-802 NUT, LOCKNUT, LOCK
-
88422-802 NUT, LOCKNUT, LOCK
-
91607-094 INSERTINSERT
-
108408-825 SCREW, CAPSCREW, CAP
-
111623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
121707-521 SPAR, FRONTSPAR, FRONT
-
138408-630 SCREW, CAPSCREW, CAP
-
142612-707 TAB, SPRING - RESONATORTAB, SPRING - RESONATOR
-
150607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
150607-249 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
168408-885 SCREW, CAPSCREW, CAP
-
178476-830 SCREW, MACHINESCREW, MACHINE
-
181623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
198408-820 SCREW, CAPSCREW, CAP
-
200607-252 SUPPORT, SIDE - REAR RIGHTSUPPORT, SIDE - REAR RIGHT
-
201607-055 SUPPORT, SIDE - REAR LEFTSUPPORT, SIDE - REAR LEFT
-
218408-625 SCREW, CAPSCREW, CAP
-
228053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
238422-602 NUT, LOCKNUT, LOCK
-
248476-616 SCREW, MACHINESCREW, MACHINE
-
258476-625 SCREW, MACHINESCREW, MACHINE
-
260708-584 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
278468-625 SCREW, MACHINESCREW, MACHINE
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
291623-041 SPACERSPACER
-
308468-665 SCREW, MACHINESCREW, MACHINE
-
311707-570 SUPPORT, STEERINGSUPPORT, STEERING
-
321707-566 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
335706-225 SPAR, REAR - LEFT (INC. 34-35)SPAR, REAR - LEFT (INC. 34-35)
-
346606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
358060-484 ...RIVET...RIVET
