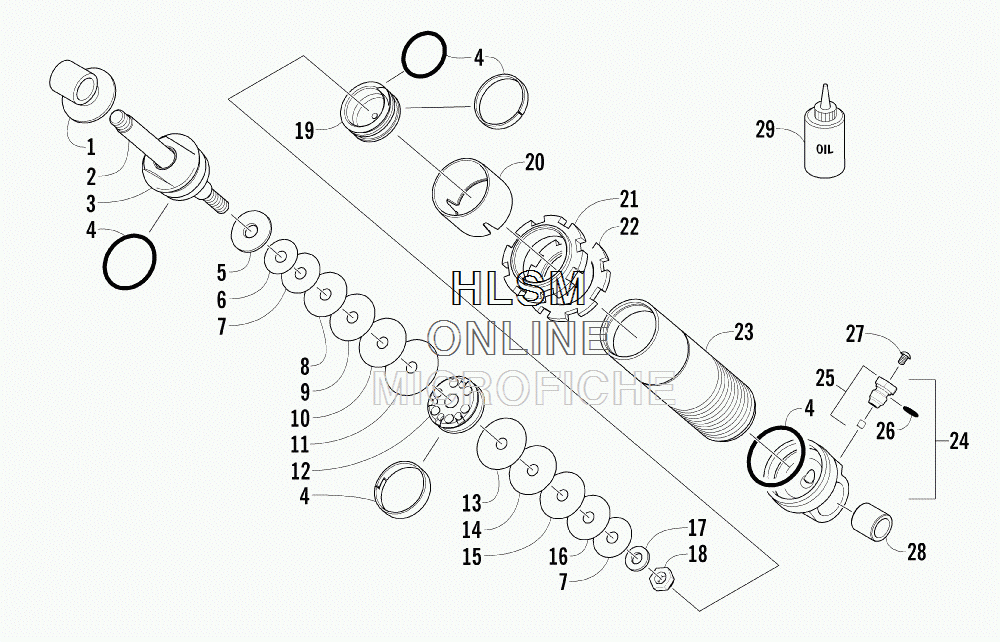

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat F 800 LXR (BLACK) [S2013F8HLXUSB] - 2013 года выпуска
-
№АртикулНазвание
-
-2704-255 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13604-797 EYELET, SHOCKEYELET, SHOCK
-
23604-764 ROD, SHOCKROD, SHOCK
-
33604-771 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
42703-980 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
53604-789 WASHER, TOP OUTWASHER, TOP OUT
-
63603-096 VALVE, 17.78 X 0.30 MMVALVE, 17.78 X 0.30 MM
-
73603-105 VALVE, 20.32 X 0.25 MMVALVE, 20.32 X 0.25 MM
-
83603-114 VALVE, 20.86 X 0.20 MMVALVE, 20.86 X 0.20 MM
-
93603-124 VALVE, 25.40 X 0.20 MMVALVE, 25.40 X 0.20 MM
-
103603-144 VALVE, 27.94 X 0.20 MMVALVE, 27.94 X 0.20 MM
-
113603-184 VALVE, 33.02 X 0.20 MMVALVE, 33.02 X 0.20 MM
-
123604-790 PISTON, 2.35 MM - ORIFICEPISTON, 2.35 MM - ORIFICE
-
133603-174 VALVE, 31.75 X 0.20 MMVALVE, 31.75 X 0.20 MM
-
143603-145 VALVE, 27.94 X 0.25 MMVALVE, 27.94 X 0.25 MM
-
153603-125 VALVE, 25.40 X 0.25 MMVALVE, 25.40 X 0.25 MM
-
163603-115 VALVE, 22.86 X 0.25 MMVALVE, 22.86 X 0.25 MM
-
173604-775 WASHER, BACKUPWASHER, BACKUP
-
183604-739 NUTNUT
-
193604-772 PISTON, FLOATINGPISTON, FLOATING
-
203604-773 SLEEVE, WEARSLEEVE, WEAR
-
212603-014 NUT, ADJUSTERNUT, ADJUSTER
-
223604-779 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
233604-777 BODY, SHOCKBODY, SHOCK
-
242704-257 END CAP, SHOCK - ASSEMBLY (INC. 25-26)END CAP, SHOCK - ASSEMBLY (INC. 25-26)
-
253604-751 ...VALVE, PRESSURE - ASSEMBLY (INC. 26)...VALVE, PRESSURE - ASSEMBLY (INC. 26)
-
263604-733 ......O-RING......O-RING
-
273604-750 SCREW, VALVESCREW, VALVE
-
282603-019 SLEEVE, SHOCK EYELETSLEEVE, SHOCK EYELET
-
295639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
