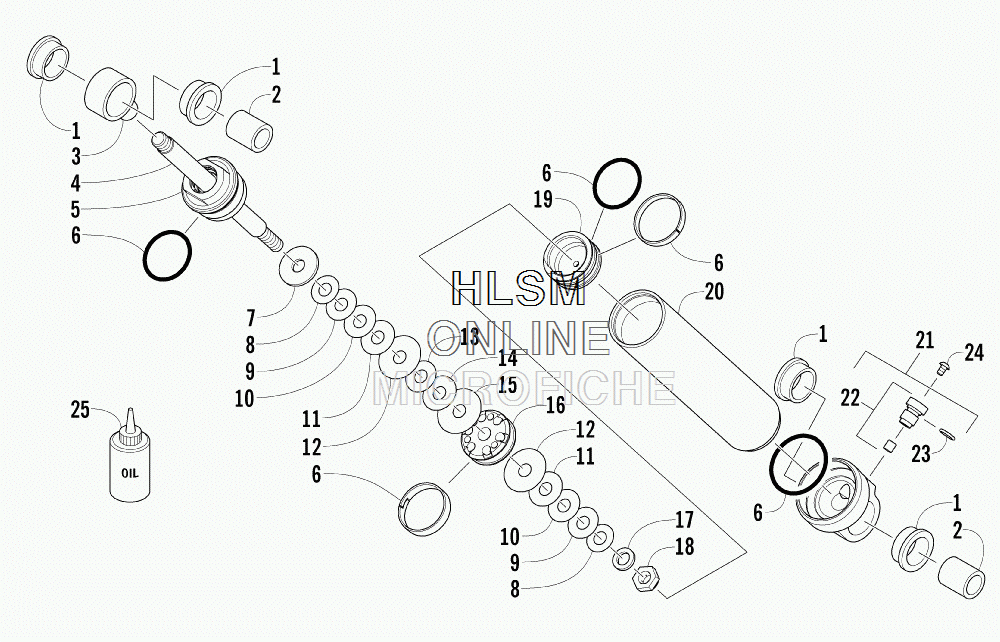

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat F 800 LXR (BLACK) [S2013F8HLXUSB] - 2013 года выпуска
-
№АртикулНазвание
-
-2704-252 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-776 ROD, SHOCKROD, SHOCK
-
53604-770 CAP, SHOCKCAP, SHOCK
-
62703-980 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
73604-789 WASHER, TOP OUTWASHER, TOP OUT
-
83603-105 VALVE, 20.32 X 0.25 MMVALVE, 20.32 X 0.25 MM
-
93603-115 VALVE, 22.86 X 0.25 MMVALVE, 22.86 X 0.25 MM
-
103603-125 VALVE, 25.40 X 0.25 MMVALVE, 25.40 X 0.25 MM
-
113603-145 VALVE, 27.94 X 0.25 MMVALVE, 27.94 X 0.25 MM
-
123603-175 VALVE, 31.75 X 0.25 MMVALVE, 31.75 X 0.25 MM
-
133603-104 VALVE, 20.32 X 0.20 MMVALVE, 20.32 X 0.20 MM
-
143603-144 VALVE, 27.94 X 0.20 MMVALVE, 27.94 X 0.20 MM
-
153603-186 VALVE, 33.02 X 0.30 MMVALVE, 33.02 X 0.30 MM
-
162603-018 PISTON, 1.40 MM - ORIFICEPISTON, 1.40 MM - ORIFICE
-
173604-775 WASHER, BACKUPWASHER, BACKUP
-
183604-739 NUTNUT
-
193604-772 PISTON, FLOATINGPISTON, FLOATING
-
203604-759 BODY, SHOCKBODY, SHOCK
-
212704-257 END CAP, SHOCK - ASSEMBLY (INC. 22-23)END CAP, SHOCK - ASSEMBLY (INC. 22-23)
-
223604-751 ...VALVE, PRESSURE - ASSEMBLY (INC. 23)...VALVE, PRESSURE - ASSEMBLY (INC. 23)
-
233604-733 ......O-RING......O-RING
-
243604-750 SCREW, VALVESCREW, VALVE
-
255639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
