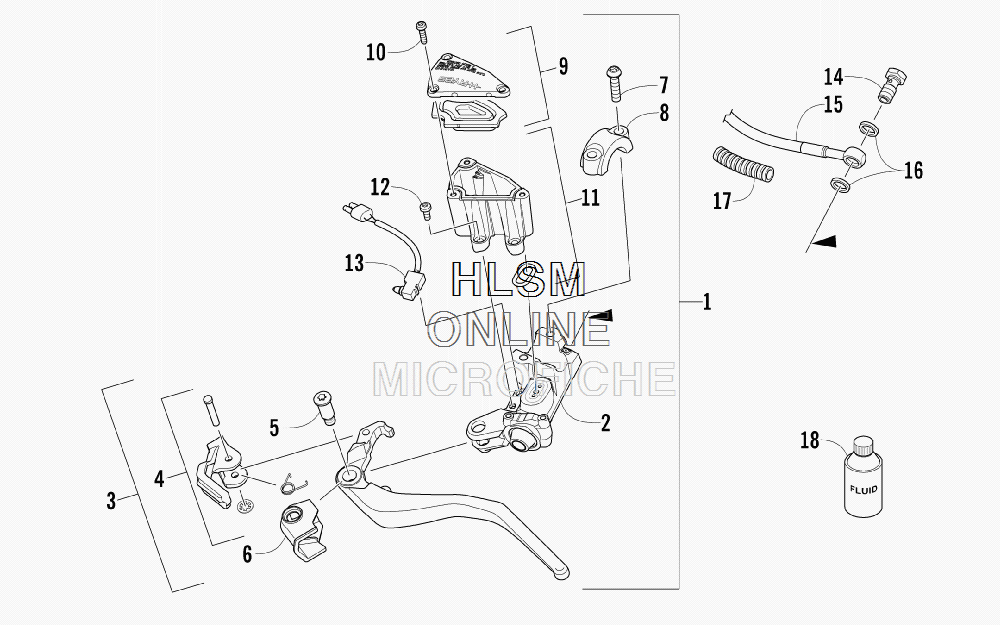

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat Sno Pro 600 CROSS COUNTRY GREEN [S2013ACDCCUSG] - 2013 года выпуска
-
№АртикулНазвание
-
12602-477 BRAKE ASSEMBLY (INC. 2-13)BRAKE ASSEMBLY (INC. 2-13)
-
22602-479 ...PISTON ASSEMBLY...PISTON ASSEMBLY
-
32602-427 ...LEVER, BRAKE - ASSEMBLY (INC. 4-6)...LEVER, BRAKE - ASSEMBLY (INC. 4-6)
-
42602-428 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
52602-624 ......SCREW, SHOULDER......SCREW, SHOULDER
-
62602-625 ......BOOT......BOOT
-
71602-936 ...SCREW, MACHINE...SCREW, MACHINE
-
80502-869 ...CLAMP, HANDLEBAR...CLAMP, HANDLEBAR
-
92602-429 ...COVER, RESERVOIR...COVER, RESERVOIR
-
102602-430 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
112602-433 ...RESERVOIR (INC. 12)...RESERVOIR (INC. 12)
-
122602-519 ......SCREW, SELF-TAPPING......SCREW, SELF-TAPPING
-
132602-432 ...SWITCH, BRAKE...SWITCH, BRAKE
-
140423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
152602-375 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
160423-178 WASHER, CRUSHWASHER, CRUSH
-
171619-563 CONDUIT, HIGH TEMPERATURE - 3 FTCONDUIT, HIGH TEMPERATURE - 3 FT
-
185639-848 FLUID, BRAKE - 12 OZFLUID, BRAKE - 12 OZ
