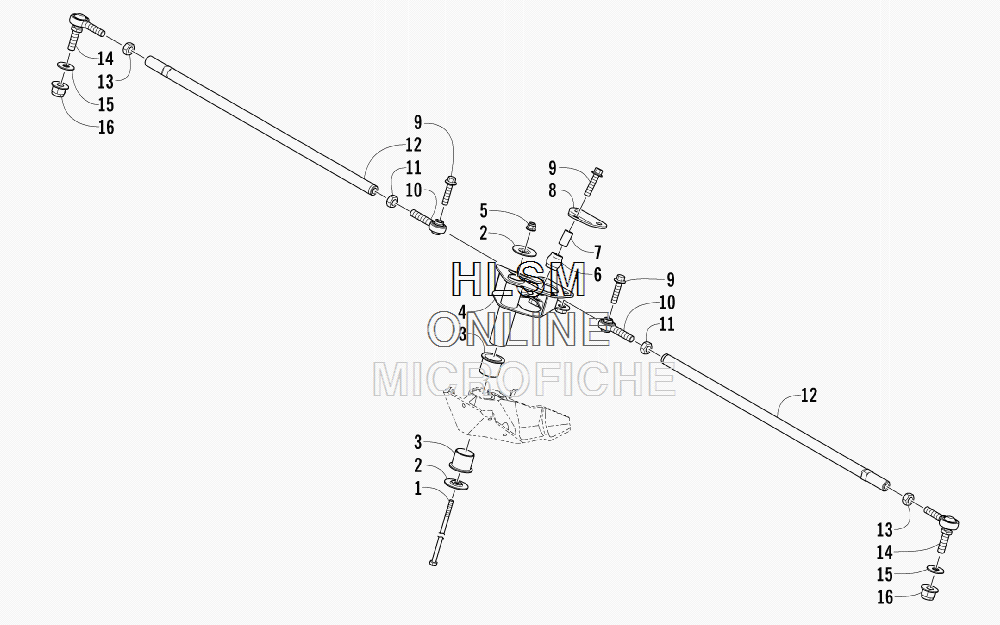

TIE ROD ASSEMBLY для Arctic Cat Sno Pro 600 CROSS COUNTRY GREEN [S2013ACDCCUSG] - 2013 года выпуска
-
№АртикулНазвание
-
11623-964 SCREW, CAPSCREW, CAP
-
21623-807 WASHERWASHER
-
32603-852 BUSHINGBUSHING
-
41705-419 ARM, STEERINGARM, STEERING
-
58427-602 NUT, LOCKNUT, LOCK
-
61605-083 BUSHINGBUSHING
-
71605-081 AXLEAXLE
-
81605-080 PLATE, RETAININGPLATE, RETAINING
-
98408-836 SCREW, CAPSCREW, CAP
-
101605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
118420-002 NUT, HEX - RIGHT-HAND THREADNUT, HEX - RIGHT-HAND THREAD
-
121605-125 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
130423-013 NUT, HEX - LEFT-HAND THREADNUT, HEX - LEFT-HAND THREAD
-
141605-019 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
151623-803 WASHERWASHER
-
168427-002 NUT, LOCKNUT, LOCK
