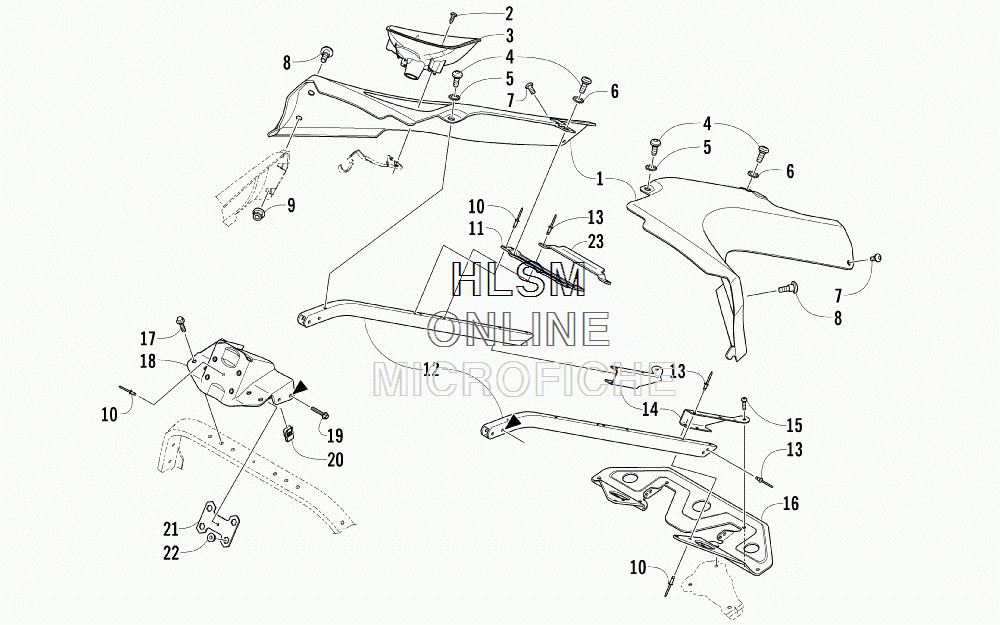

SEAT SUPPORT ASSEMBLY для Arctic Cat F5 [S2014F5CEFUSG] - 2014 года выпуска
-
№АртикулНазвание
-
13706-712 SPAR, REAR - RIGHT - GREENSPAR, REAR - RIGHT - GREEN
-
14606-895 SPAR, REAR - LEFT - GREENSPAR, REAR - LEFT - GREEN
-
20623-727 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
34606-683 CUP, RECOILCUP, RECOIL
-
40423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
58053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
68053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
78470-510 SCREW, MACHINESCREW, MACHINE
-
80423-355 SCREW, SHOULDERSCREW, SHOULDER
-
98427-602 NUT, LOCKNUT, LOCK
-
108060-488 RIVET, BLIND-DH SS56 ZINCRIVET, BLIND-DH SS56 ZINC
-
114606-329 BRACKET, CROSSOVERBRACKET, CROSSOVER
-
125606-092 TUBE, SUPPORT - RIGHTTUBE, SUPPORT - RIGHT
-
125706-049 TUBE, SUPPORT - LEFTTUBE, SUPPORT - LEFT
-
138060-484 RIVET, BLIND-DH SS53 ZINCRIVET, BLIND-DH SS53 ZINC
-
145606-096 BRACKET, ADJUSTABLE - RIGHTBRACKET, ADJUSTABLE - RIGHT
-
145606-097 BRACKET, ADJUSTABLE - LEFTBRACKET, ADJUSTABLE - LEFT
-
158470-520 SCREW, MACHINESCREW, MACHINE
-
165606-094 PLATE, SUPPORT - LOWERPLATE, SUPPORT - LOWER
-
178408-625 SCREW, CAPSCREW, CAP
-
184606-328 PLATE, SUPPORT - UPPERPLATE, SUPPORT - UPPER
-
198408-535 SCREW, CAPSCREW, CAP
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
210605-948 BRACKET, NUT HOLDERBRACKET, NUT HOLDER
-
228424-602 NUTNUT
-
236606-096 BRACKET, CROSSOVER - SEAT-BASEBRACKET, CROSSOVER - SEAT-BASE
