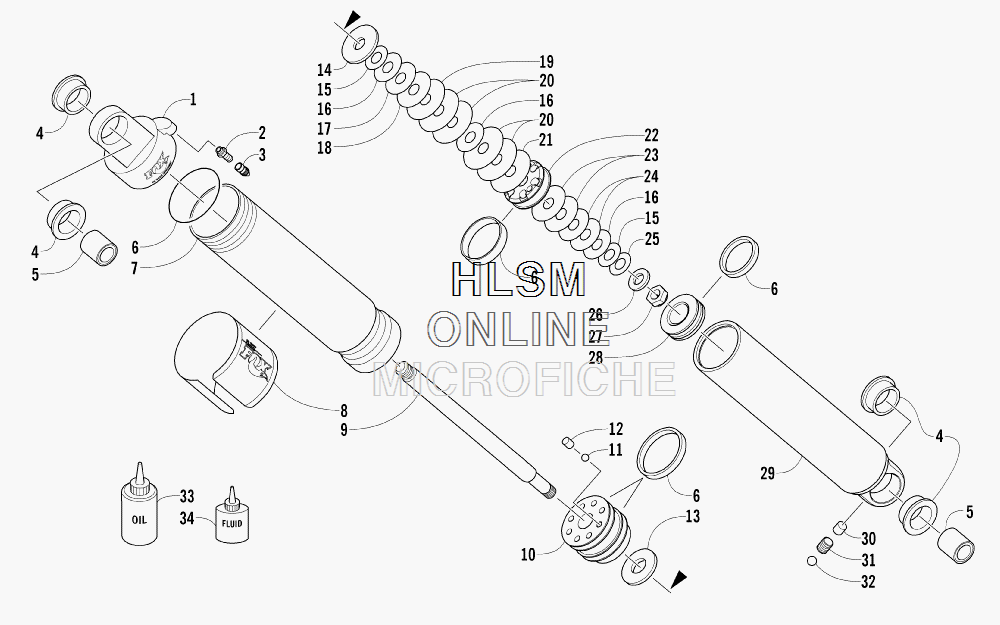

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M 8000 HCR - GREEN [S2014M8HHCUSG] - 2014 года выпуска
-
№АртикулНазвание
-
-2704-331 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13604-319 END CAP, SHOCK (INC. 2)END CAP, SHOCK (INC. 2)
-
22603-511 ...VALVE, AIR...VALVE, AIR
-
32603-327 CAP, AIR VALVECAP, AIR VALVE
-
43604-835 BUSHINGBUSHING
-
52604-223 SLEEVESLEEVE
-
62604-796 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
72603-722 BODY, SHOCK - UPPERBODY, SHOCK - UPPER
-
82603-905 DECAL, SHOCKDECAL, SHOCK
-
93604-320 ROD, SHOCKROD, SHOCK
-
102603-961 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
111604-315 BALL, BLEEDBALL, BLEED
-
121603-940 SCREW, SETSCREW, SET
-
130603-386 BUMPER, INTERNAL - TOP OUTBUMPER, INTERNAL - TOP OUT
-
140603-540 WASHER, TOP OUTWASHER, TOP OUT
-
150603-334 VALVE, 0.800 X 0.008 IN.VALVE, 0.800 X 0.008 IN.
-
160603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
170603-340 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
180603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
190603-346 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
200603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
210603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
222603-935 PISTON, 0.070 IN. - ORIFICEPISTON, 0.070 IN. - ORIFICE
-
230603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
240603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
250603-331 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
260603-389 WASHER, BACKUPWASHER, BACKUP
-
270603-301 NUTNUT
-
282603-919 PISTON, FLOATINGPISTON, FLOATING
-
292603-335 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
301604-428 PLUG, RUBBER - VALVEPLUG, RUBBER - VALVE
-
312603-338 SCREW, SETSCREW, SET
-
322603-337 BALL, AIR VALVEBALL, AIR VALVE
-
335639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
344639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
