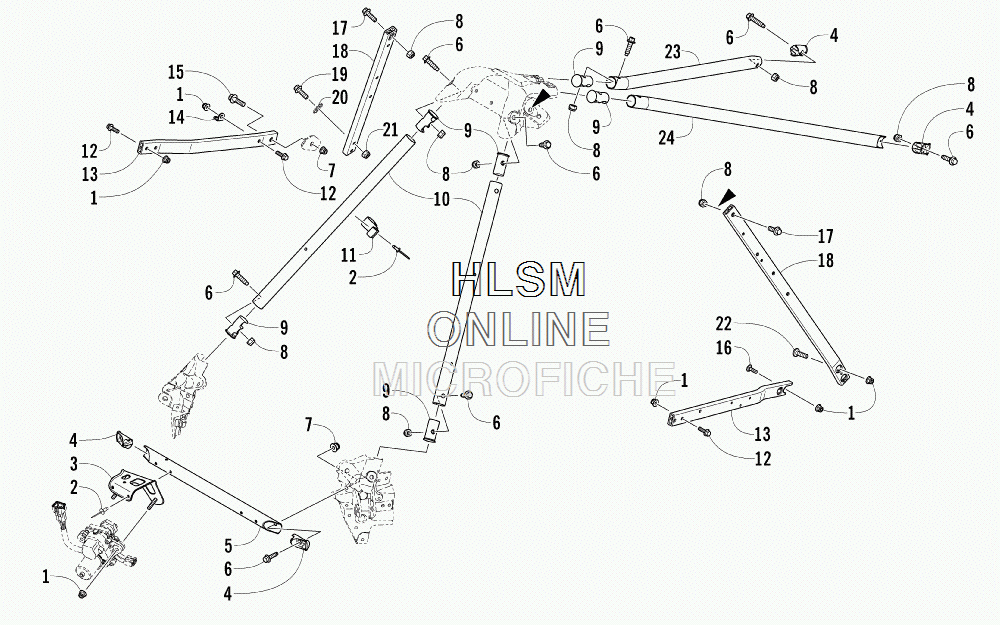

STEERING SUPPORT ASSEMBLY для Arctic Cat M 8000 HCR - GREEN [S2014M8HHCUSG] - 2014 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
28060-686 RIVETRIVET
-
34706-845 BRACKET, MOUNTING - SERVOMOTORBRACKET, MOUNTING - SERVOMOTOR
-
41607-002 INSERTINSERT
-
51607-351 SUPPORT, SHOCK MOUNT BRACKETSUPPORT, SHOCK MOUNT BRACKET
-
61623-982 SCREW, CAPSCREW, CAP
-
78427-802 NUT, LOCKNUT, LOCK
-
88422-802 NUT, LOCKNUT, LOCK
-
91607-094 INSERTINSERT
-
101607-352 SPAR, FRONTSPAR, FRONT
-
111623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
128408-630 SCREW, CAPSCREW, CAP
-
130607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
131607-368 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
142612-707 TAB, SPRINGTAB, SPRING
-
158408-885 SCREW, CAPSCREW, CAP
-
161623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
178408-820 SCREW, CAPSCREW, CAP
-
180607-252 SUPPORT, SIDE - REAR RIGHTSUPPORT, SIDE - REAR RIGHT
-
181607-393 SUPPORT, SIDE - REAR LEFTSUPPORT, SIDE - REAR LEFT
-
198408-625 SCREW, CAPSCREW, CAP
-
208053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
218422-602 NUT, LOCKNUT, LOCK
-
228476-616 SCREW, MACHINESCREW, MACHINE
-
231707-566 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
241707-567 SPAR, REAR - LEFTSPAR, REAR - LEFT
