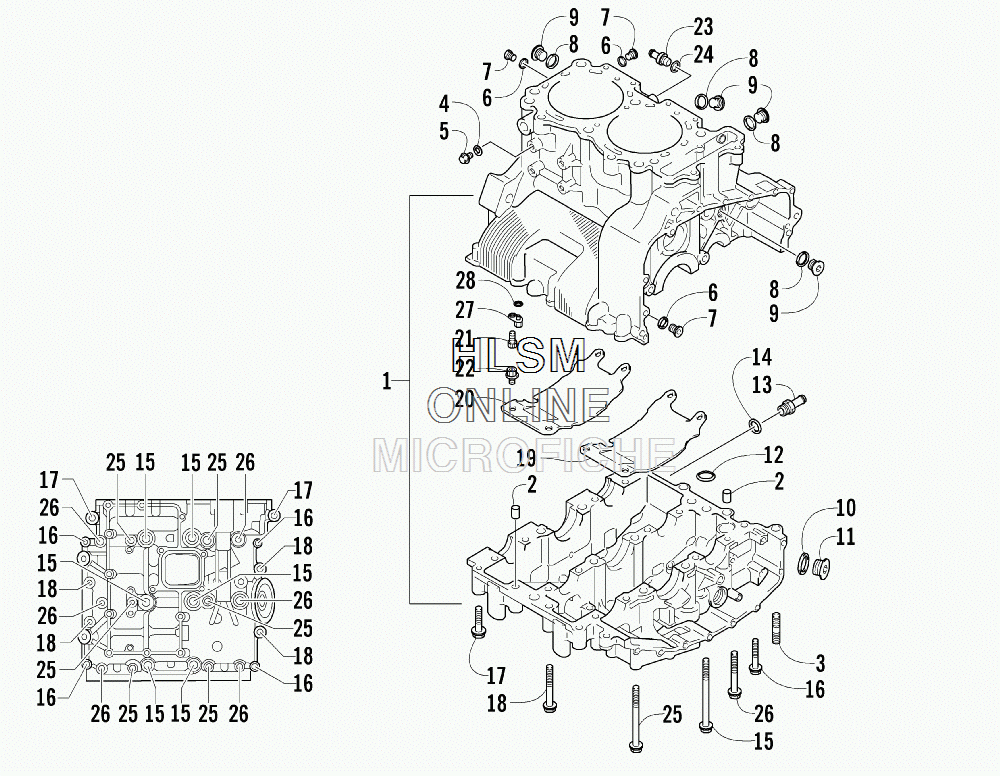

CRANKCASE ASSEMBLY для Arctic Cat M 9000 - GREEN [S2014M9NE3USG] - 2014 года выпуска
-
№АртикулНазвание
-
13007-897 CRANKCASE ASSEMBLY (INC. 2)CRANKCASE ASSEMBLY (INC. 2)
-
23004-822 ...PIN, DOWEL...PIN, DOWEL
-
33007-498 BOLT, STUDBOLT, STUD
-
43402-444 GASKETGASKET
-
53007-407 PLUG, DRAINPLUG, DRAIN
-
63007-083 GASKET, OIL PLUGGASKET, OIL PLUG
-
73423-452 PLUG, OILPLUG, OIL
-
83402-556 GASKET, OIL PLUGGASKET, OIL PLUG
-
93007-501 PLUG, OILPLUG, OIL
-
103403-106 GASKET, OIL PLUGGASKET, OIL PLUG
-
113007-085 PLUG, OILPLUG, OIL
-
123007-086 O-RING, CRANKCASEO-RING, CRANKCASE
-
133007-093 FITTINGFITTING
-
143402-013 GASKETGASKET
-
153007-681 BOLTBOLT
-
163007-411 BOLTBOLT
-
173007-401 BOLTBOLT
-
183007-408 BOLTBOLT
-
193007-090 PLATE, OIL SEPARATOR - RIGHTPLATE, OIL SEPARATOR - RIGHT
-
203007-091 PLATE, OIL SEPARATOR - LEFTPLATE, OIL SEPARATOR - LEFT
-
213007-092 BOLTBOLT
-
223007-855 BOLTBOLT
-
233007-093 FITTINGFITTING
-
243402-013 GASKETGASKET
-
253007-087 BOLT,CRANKCASE (8X90)BOLT,CRANKCASE (8X90)
-
263007-088 BOLT,CRANKCASE (8X70)BOLT,CRANKCASE (8X70)
-
273007-094 JET, PISTON COOLINGJET, PISTON COOLING
-
283423-051 O-RINGO-RING
