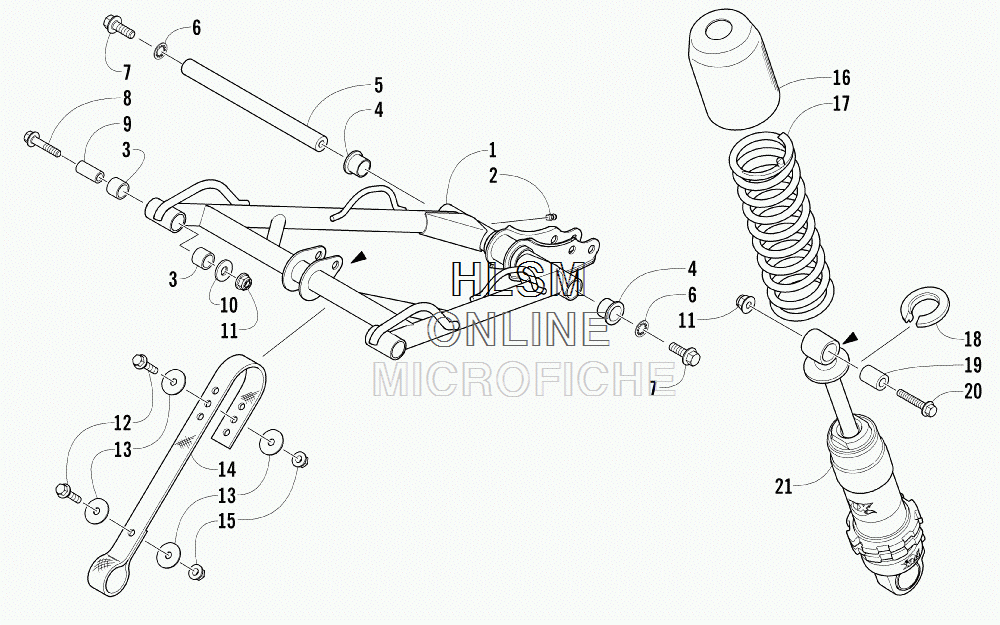

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat M 9000 - GREEN [S2014M9NE3USG] - 2014 года выпуска
-
№АртикулНазвание
-
12704-068 ARM, FRONT SUSPENSION - BLACK (INC. 2-4)ARM, FRONT SUSPENSION - BLACK (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
30604-889 ...BUSHING...BUSHING
-
43604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
53604-634 AXLEAXLE
-
61623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
78413-036 SCREW, CAPSCREW, CAP
-
88408-065 SCREW, CAPSCREW, CAP
-
93604-665 AXLEAXLE
-
108450-163 WASHERWASHER
-
118427-002 NUT, LOCKNUT, LOCK
-
128408-630 SCREW, CAPSCREW, CAP
-
138450-109 WASHERWASHER
-
143604-391 STRAP, LIMITERSTRAP, LIMITER
-
158427-602 NUT, LOCKNUT, LOCK
-
160604-790 COVER, SHOCKCOVER, SHOCK
-
171704-236 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
183604-200 RETAINER, SPRINGRETAINER, SPRING
-
193604-273 AXLEAXLE
-
208408-045 SCREW, CAPSCREW, CAP
-
212704-365 SHOCK ABSORBERSHOCK ABSORBER
