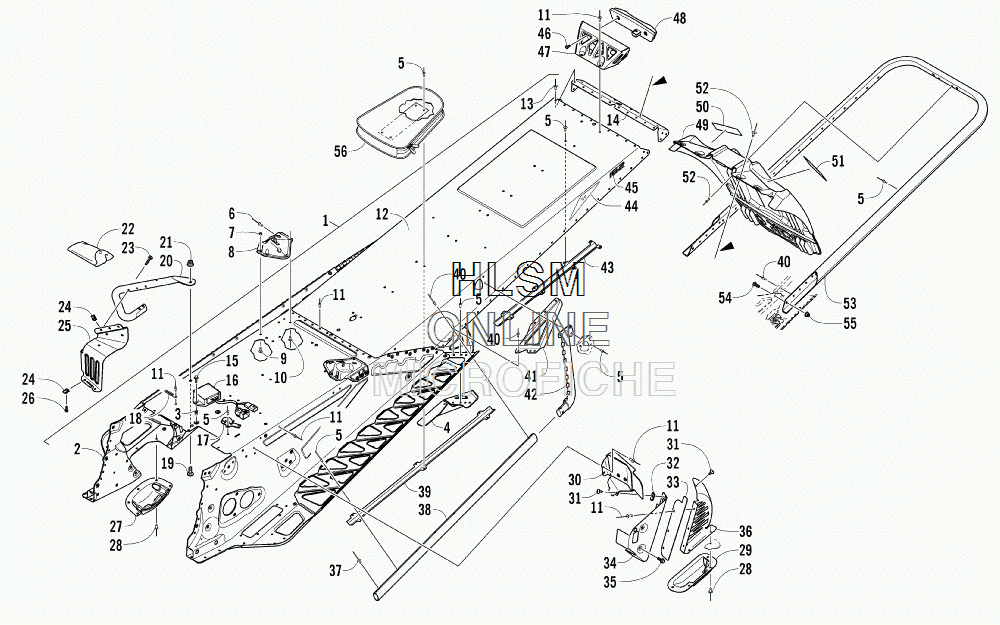

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 9000 HCR - GREEN [S2014M9NHCUSG] - 2014 года выпуска
-
№АртикулНазвание
-
-2707-360 COMPLETE CHASSIS ASSEMBLY - GREENCOMPLETE CHASSIS ASSEMBLY - GREEN
-
12707-357 TUNNEL ASSEMBLY - GREEN (INC. 2-14)TUNNEL ASSEMBLY - GREEN (INC. 2-14)
-
22707-345 ...TUNNEL, FRONT - ASSEMBLY - GREEN(INC. 3-5)...TUNNEL, FRONT - ASSEMBLY - GREEN(INC. 3-5)
-
31623-797 ......INSERT......INSERT
-
42707-342 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
-
42707-343 ......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
-
58060-686 ......RIVET......RIVET
-
61623-206 ...RIVET...RIVET
-
78422-502 ...NUT, LOCK...NUT, LOCK
-
82707-340 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
-
82707-341 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
-
98476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
101623-257 ...RIVET...RIVET
-
118060-682 ...RIVET...RIVET
-
122707-355 ...TUNNEL, REAR - GREEN...TUNNEL, REAR - GREEN
-
138060-484 ...RIVET...RIVET
-
142707-315 ...END CAP, TUNNEL - GREEN...END CAP, TUNNEL - GREEN
-
158408-516 SCREW, CAPSCREW, CAP
-
160630-288 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
170645-709 CLIP, ROUTINGCLIP, ROUTING
-
181623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
198476-820 SCREW, MACHINESCREW, MACHINE
-
201707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
201707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
218427-802 NUT, LOCKNUT, LOCK
-
220744-064 KIT, TOOLKIT, TOOL
-
238468-536 SCREW, MACHINESCREW, MACHINE
-
241623-637 CLIP, U-NUTCLIP, U-NUT
-
252707-004 FOOTREST - RIGHT - GREENFOOTREST - RIGHT - GREEN
-
252707-005 FOOTREST - LEFT - GREENFOOTREST - LEFT - GREEN
-
268470-516 SCREW, MACHINESCREW, MACHINE
-
271607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
288061-708 RIVETRIVET
-
290607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
301702-278 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
311623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
321623-052 CLIP, U-NUTCLIP, U-NUT
-
332707-007 SHIELD, BRAKE DISC - CENTER - GREENSHIELD, BRAKE DISC - CENTER - GREEN
-
341607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
358408-613 SCREW, CAPSCREW, CAP
-
362707-006 SHIELD, BRAKE DISC - REAR - GREENSHIELD, BRAKE DISC - REAR - GREEN
-
371623-130 RIVETRIVET
-
382707-346 ROLL, TUNNEL - GREENROLL, TUNNEL - GREEN
-
390630-307 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
401623-241 RIVETRIVET
-
412707-336 GUSSET, RUNNING BOARD - RIGHT - GREENGUSSET, RUNNING BOARD - RIGHT - GREEN
-
412707-337 GUSSET, RUNNING BOARD - LEFT - GREENGUSSET, RUNNING BOARD - LEFT - GREEN
-
422707-338 GUSSET, TUNNEL ROLL - RIGHT - GREENGUSSET, TUNNEL ROLL - RIGHT - GREEN
-
422707-339 GUSSET, TUNNEL ROLL - LEFT - GREENGUSSET, TUNNEL ROLL - LEFT - GREEN
-
430630-280 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
440621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
450621-753 DECAL, TUNNEL - 162DECAL, TUNNEL - 162
-
468470-512 SCREW, MACHINESCREW, MACHINE
-
470730-198 BRACKET, MOUNTING - TAILLIGHT - GREENBRACKET, MOUNTING - TAILLIGHT - GREEN
-
480609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
496606-394 SNOWFLAPSNOWFLAP
-
505611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
515611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
528061-706 RIVETRIVET
-
532707-011 BUMPER, REAR - WHITEBUMPER, REAR - WHITE
-
548476-620 SCREW, MACHINESCREW, MACHINE
-
558427-602 NUT, LOCKNUT, LOCK
-
566606-615 BAG, SPARE BELTBAG, SPARE BELT
